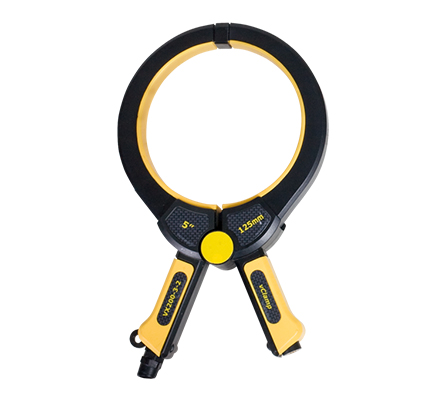

Transmitter Signal Clamps

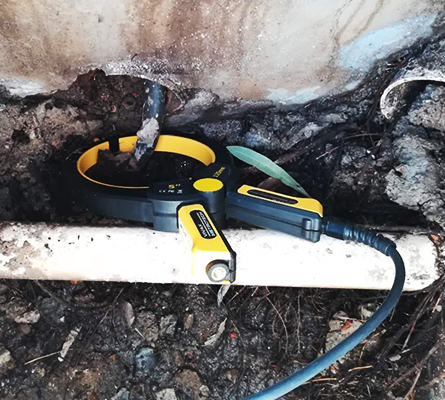

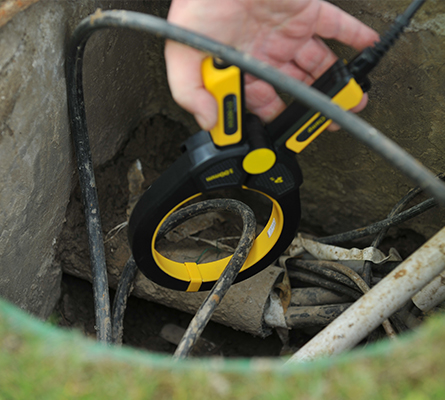

Signal Clamps provides a precise way to apply a locating signal. It is generally used when it is not possible or convenient to access the conductor to make a direct connection but there is sufficient room to place the clamp around the cable or pipe, or when it is not safe to make a direct connection because the target cable is carrying electricity.

Signal Clampsare specialized inductive devices, sometimes known as a toroid or coupler. All clamps are optimized to work at specific frequencies. In most cases clamps are designed to be used at frequencies generally between 8kHz and 83.1kHz.

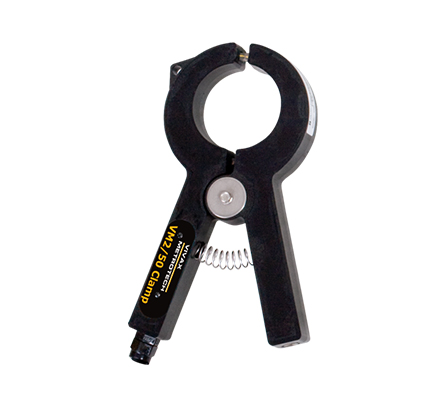

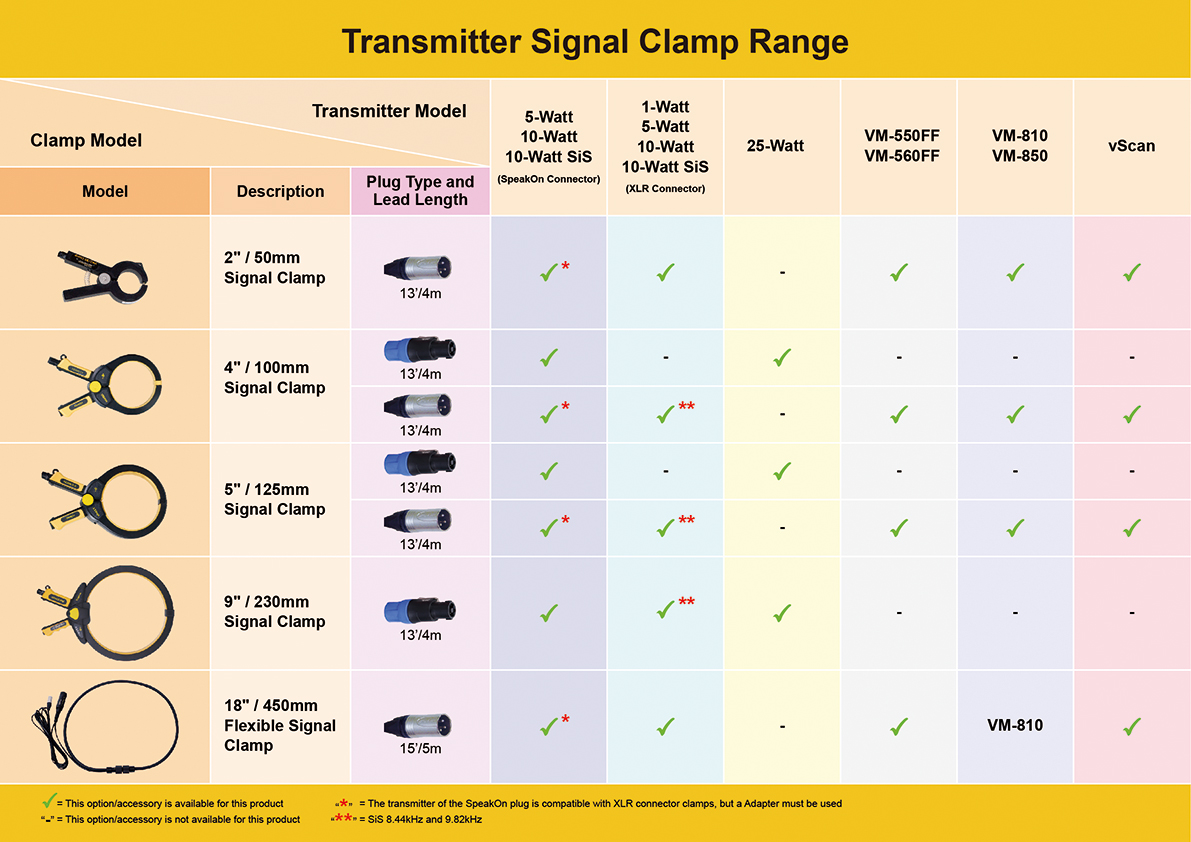

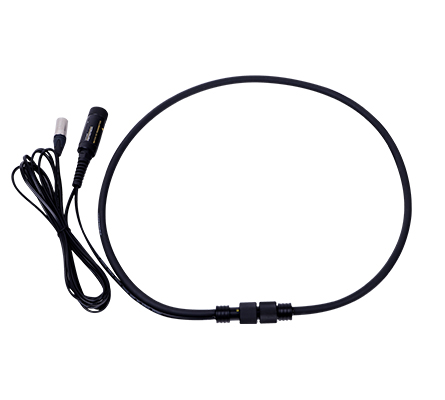

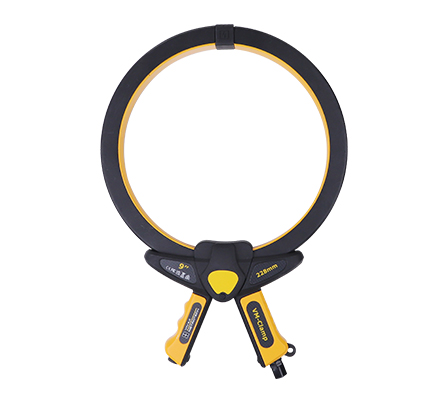

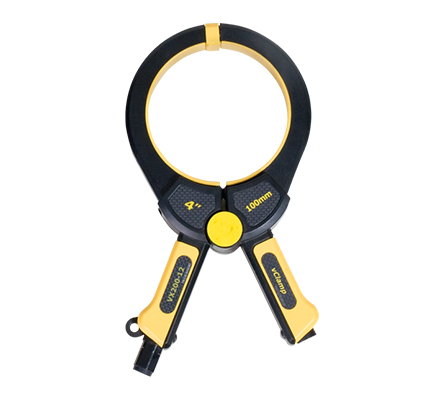

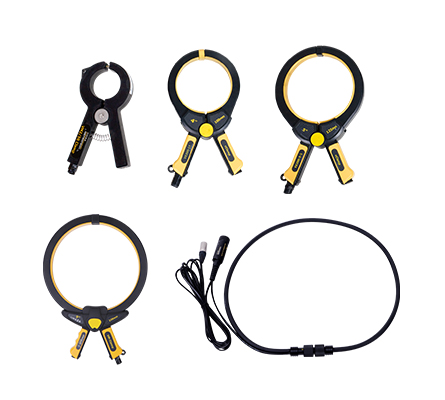

  • Range of clamps from 2” to 18”
  • Apply a transmitter signal to live cables
  • Apply locate signals on lines in a range of situations

Download

brochureSizeDownload
Locator Accessory Brochure V1.2 5.39 MB Download
technical-specification
Clamps and Clamp Accessories Technical Specifications V2.8 593.55 KB Download
quick-guide
Signal Clamp User Guide V1.6 374.13 KB Download
