Overview

The VM 500 Series are general-purpose locators that detect buried utilities in various situations. With a 50/60Hz passive power locating frequency and three active frequencies, the VM 500 series locators will meet the requirements of those wishing to detect the presence of active power cables and trace short ranges. The 1-Watt transmitter also has the additional frequency of 8kHz Fault-find, so it can be used to detect the presence of ground-to-sheath faults on cable when used with the VM-510 Stand Alone A-Frame fault locator.

The 1-Watt Transmitter applies a locate frequency by direct connection or induction. Optional Induction Clamps can clamp around a line and induce the locate signal onto it.

VM-500 Series Service Drop Locators and 1-Watt VM-500 Series Transmitters

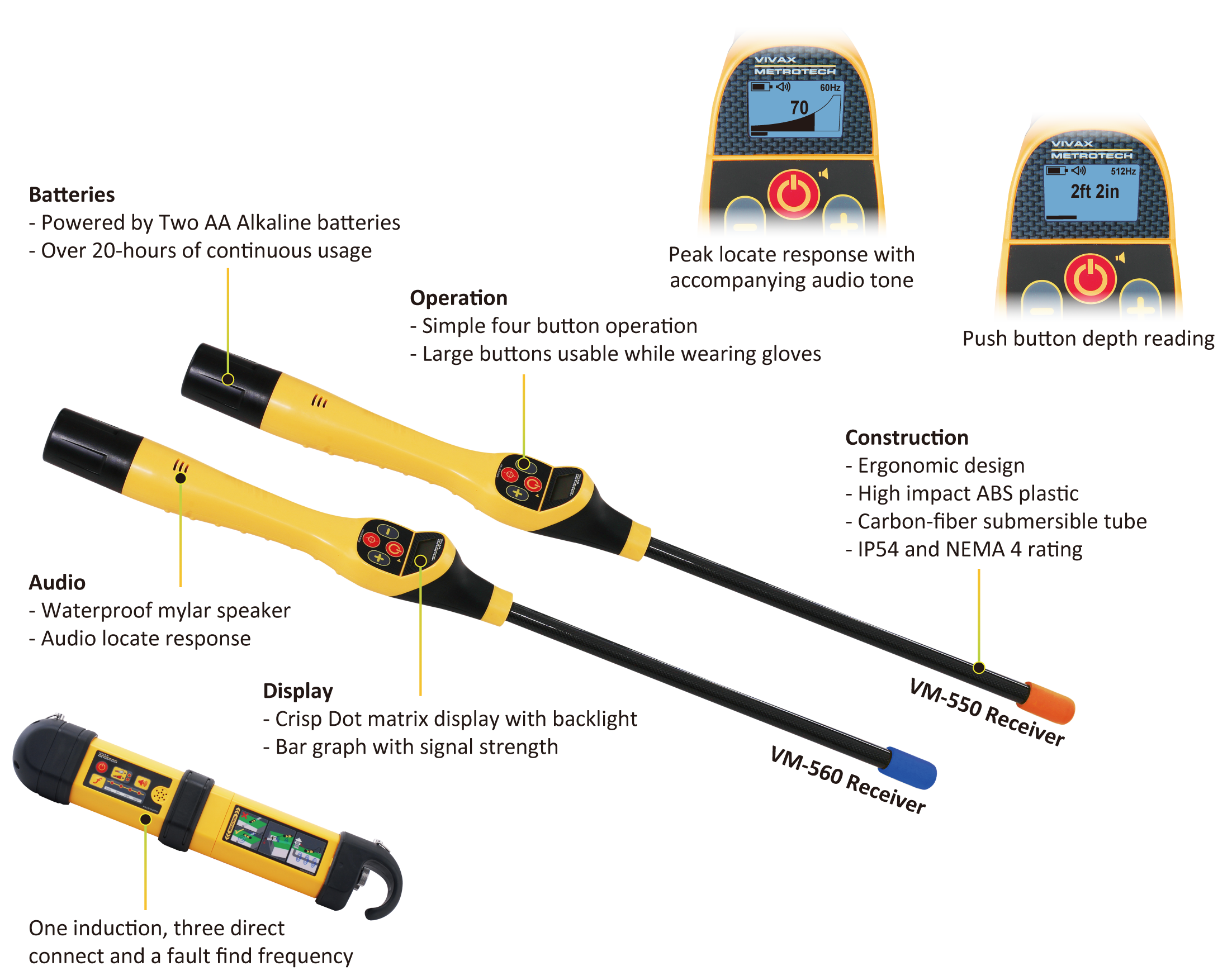

VM-500 Series Service Drop Locators

VM-550 Service Drop Locator with Screen

VM-560 Service Drop Locator with Screen

VM-500 Series Service Drop Locators

VM-550 Service Drop Locator and VM-550FF Transmitter

VM-560 Service Drop Locator and VM-560FF Transmitter

VM-500 Series Service Drop Locators What’s in the box

VM-500 Series Service Drop Locators Dimensions

1-Watt VM-500 Series Transmitters Dimensions

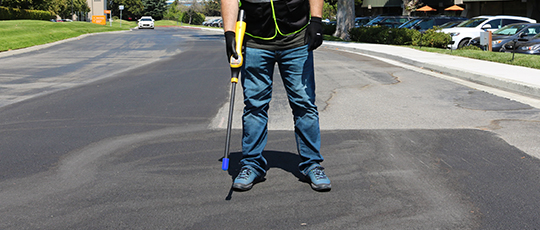

Key Features

  • Rugged and lightweight
  • Visual and audio response
  • Passive and active locate modes
  • Pushbutton depth of cover reading
