Overview

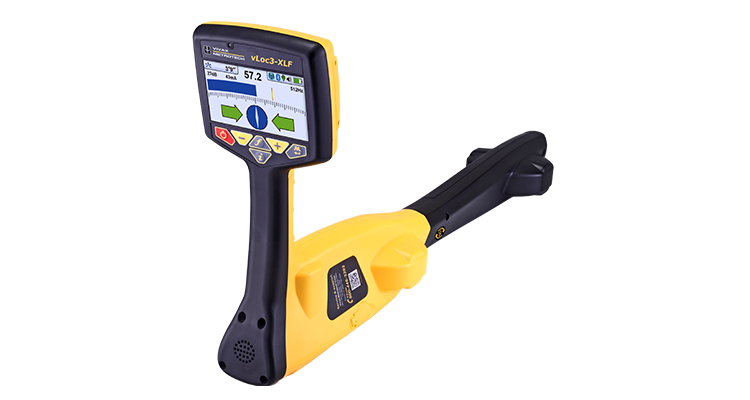

The vLoc3-XLF locator uses extra-low frequencies specific for long-line locating. The low frequencies used in the XLF are designed to travel further distances with less coupling onto adjacent lines and be less susceptible to distortion. A few applications ideal for low-frequency locating is long-haul fiber lines, metropolitan loop networks, and pipeline transmission lines.

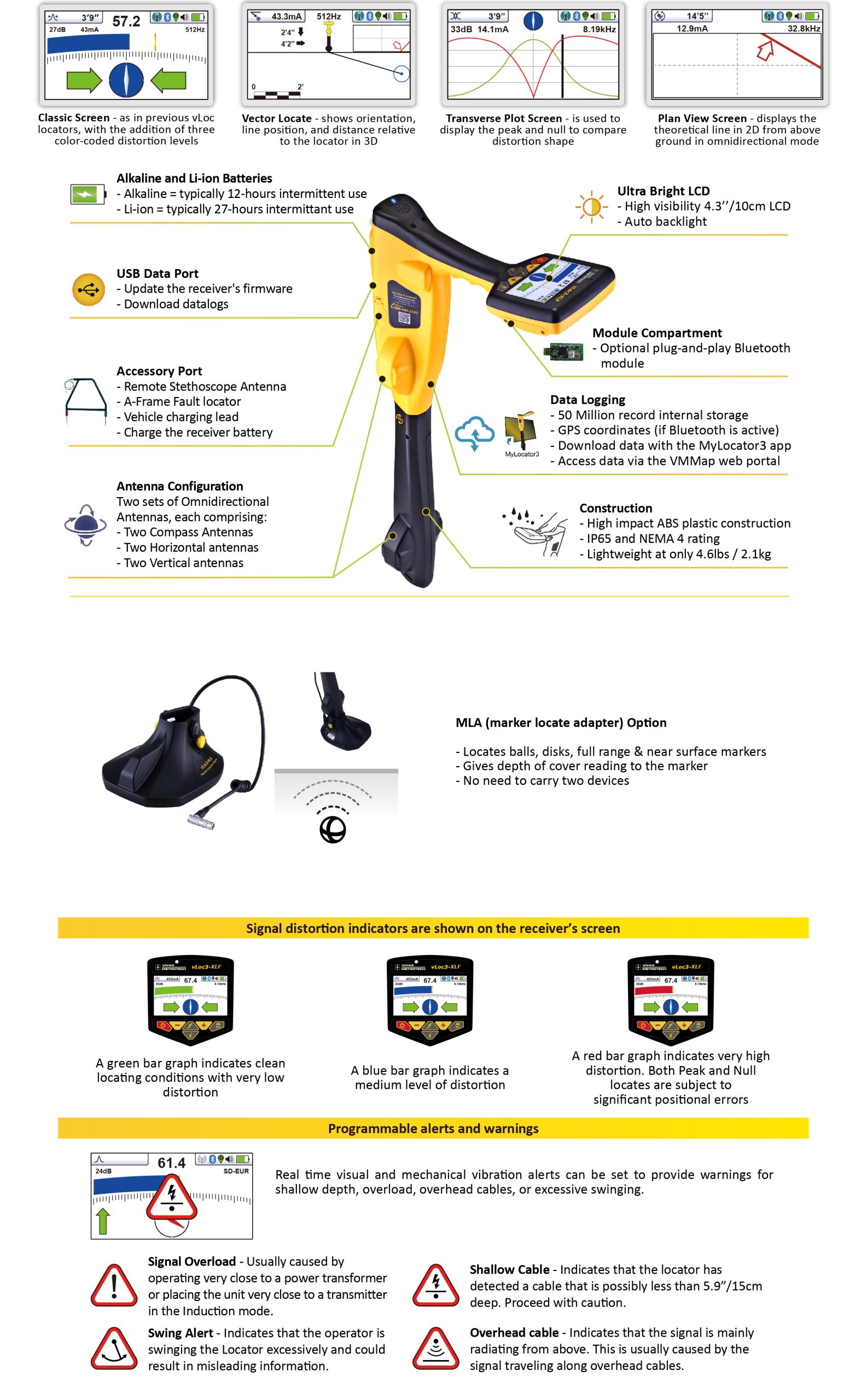

With two sets of screened 3D antennas, signal distortion is easily detected and displayed on the bright full-color display. Along with the classic locate screens, the vLoc3 series locators offer new locate perspective screens of:

  • The Vector Locate screen is used for fully automatic, non-walk over locating.
  • Transverse Graph shows both peak and null simultaneously, immediately showing signal distortion.
  • Plan View shows the relative orientation of the cable at any angle.
  • Sonde screen with guidance arrows leading to the sonde.

The highly user-configurable vLoc3 series contains eight passive locate modes, fault-find mode, SD (showing the direction of outgoing current), and a range of configurable frequencies from 20Hz to 83.1kHz. Visual and mechanical vibration alerts can also be configured by the user providing warnings for shallow depth, overload, overhead cables, and excessive swinging. Plug-in-play options for the receiver include an optional Bluetooth module usable with external GPS devices and the vLoc3-MLA (marker locator adapter), which plugs into the accessory socket to locate buried markers.



Key Features

  • Optimized for low frequencies
  • Ideal for long-line and pipeline networks
  • Color-coded EM distortion warnings
  • Cloud-based data warehousing
  • Internal data logging
  • Optional Bluetooth connectivity

Download

brochureSizeDownload
vLoc3-XLF Sales Sheet V1.0 1.90 MB Download
datasheet
vLoc3-XLF Technical Specifications VXMT Eng V1.0 1.69 MB Download

App

MyLocator3 App

Manage a single or fleet of vLoc3 series utility locators with the free MyLocator3 app. Configure locators by turning on or off features, selecting which frequencies the user has access to and creating custom startup screens. When the locator is connected to a computer running the MyLocator3 software, the program will automatically search...

View More

VMMap App

When used with Bluetooth enabled Vivax-Metrotech receivers, the VMMap Utility Mapping app records data from the field which is instantly available online via the VMMap Cloud web portal or can be shared by using the email function in the app. Location data is obtained from the mobile phone, or an external GPS device of...

View More
