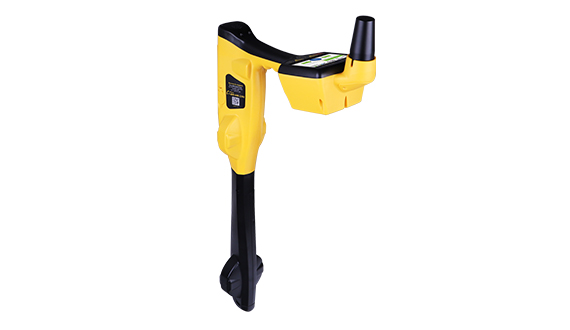

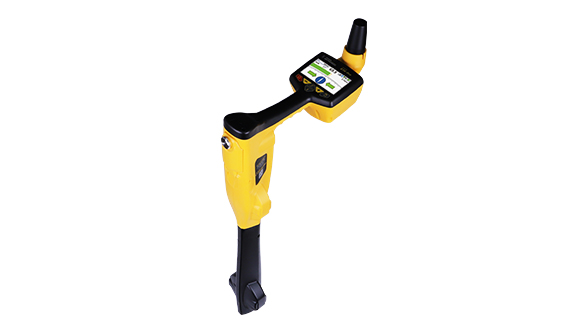

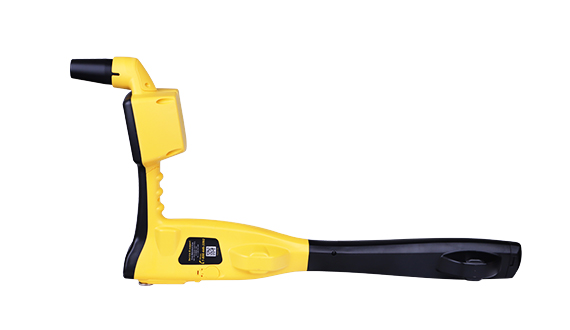

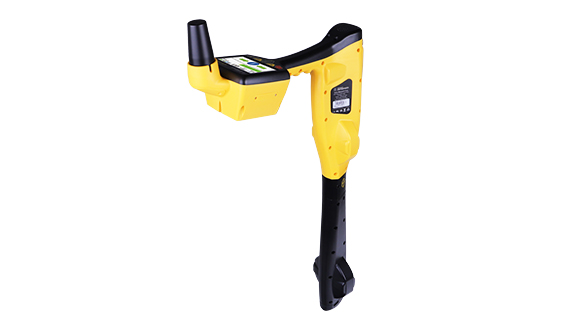

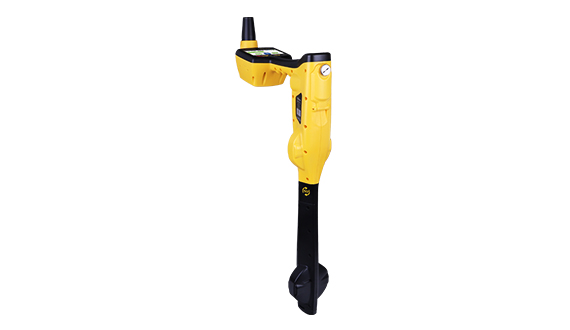

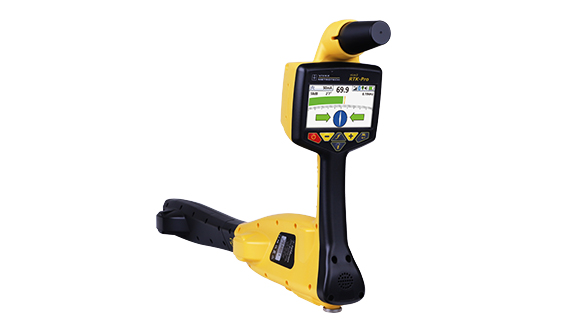

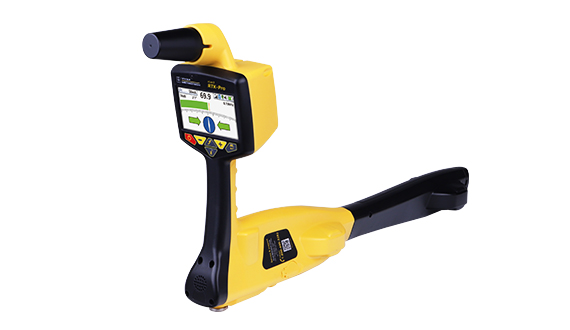

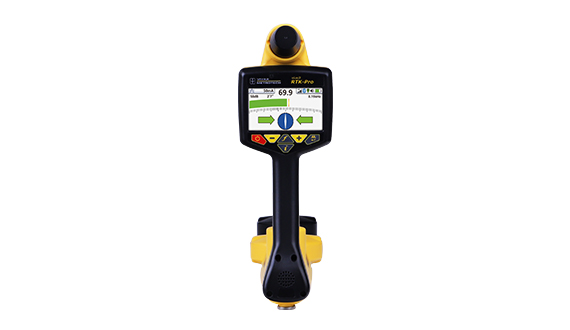

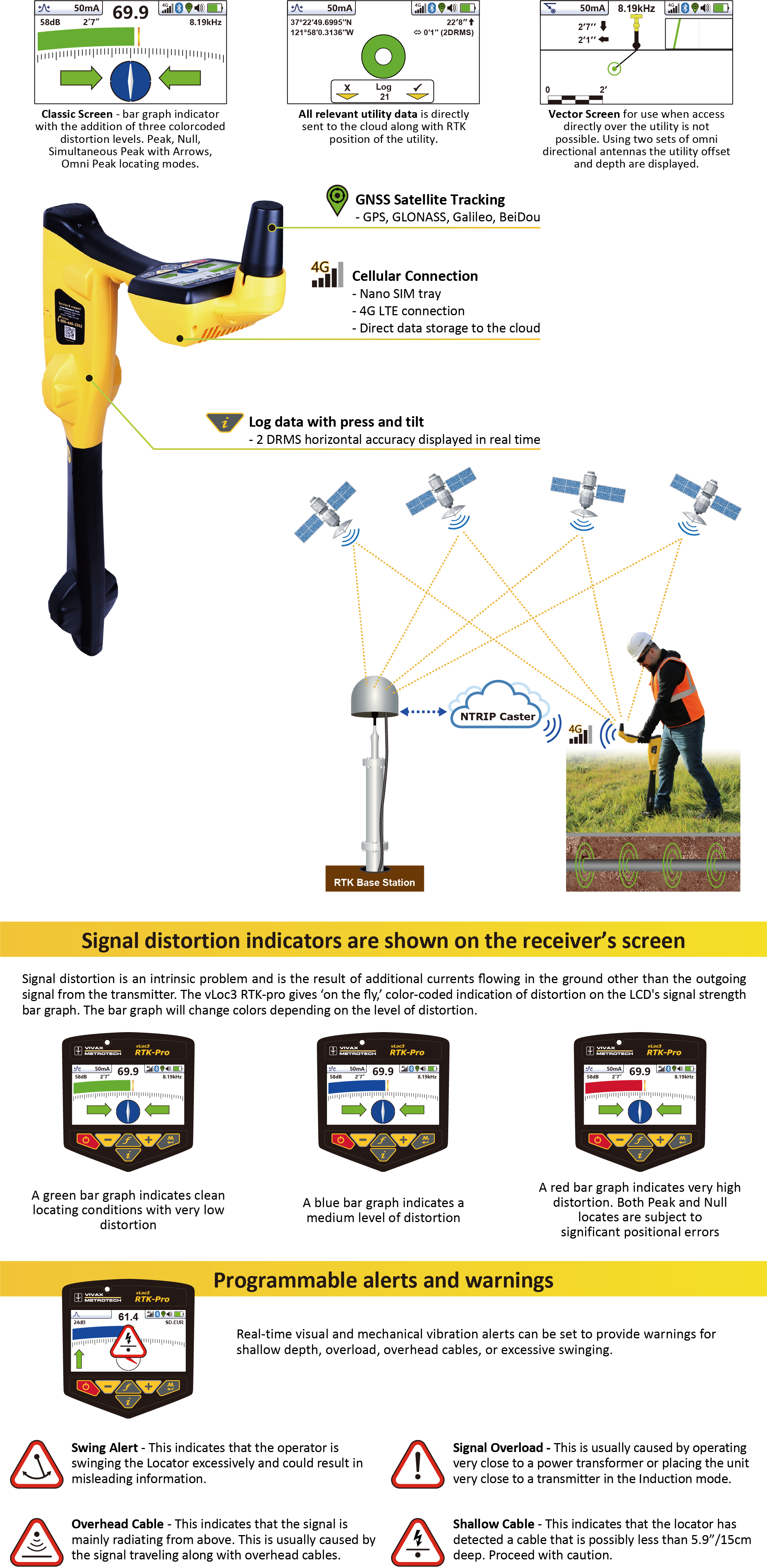

The vLoc3 RTK-Pro receiver is the first to add RTK GNSS accuracy to a utility locator. Using the RTK-Pro internal cellular module with 4G LTE capabilities, the operator has the ability to connect to NTRIP RTK (Real-Time Kinematic ) caster that provides RTCM 3 corrections. By utilizing these corrections, the operator can collect both utility location data along with the geographical location of the utility with survey-grade accuracy.
The RTK-Pro was designed for use at all operator levels, utilizing user-friendly and intuitive locate screens. Operators simply confirm the utility data with the press of a button and align the electronic spirit level to store the data. All field data is sent to the cloud and retained in the receivers onboard storage for review and exporting to external mapping programs.

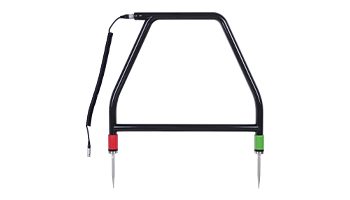

The highly user-configurable vLoc3 series contains eight passive locate modes, fault find mode, SD (showing the direction of outgoing current), and a range of configurable frequenciesn from 98Hz to 200 kHz. Visual and mechanical vibration alerts can also be configured by the user providing warnings for shallow depth, overload, overhead cables, and excessive swinging. Optional features include Tx-Link that enables the user to change the frequencies of the transmitter, power output and operate most of the features of the transmitter remotely.
Manage a single or fleet of vLoc3 series utility locators with the free MyLocator3 app. Configure locators by turning on or off features, selecting which frequencies the user has access to and creating custom startup screens. When the locator is connected to a computer running the MyLocator3 software, the program will automatically search...
When used with Bluetooth enabled Vivax-Metrotech receivers, the VMMap Utility Mapping app records data from the field which is instantly available online via the VMMap Cloud web portal or can be shared by using the email function in the app. Location data is obtained from the mobile phone, or an external GPS device of...
VMMap Web Portal
The VMMap Web Portal is the cloud-based side to the VMMap utility mapping app. Locate information such as depth readings, GPS coordinates, the distance between locates, current on the line and more are captured and displayed in the web portal. The web portal's data is compatible with Google and Apple Maps, Asset Management,...
|vLoc3 RTK-Pro Sales Sheet VXMT Eng V1.2||2.23 MB||Download|
|vLoc3 RTK-Pro Technical Specifications VXMT Eng V1.1||507.44 KB||Download|
|VMMap Web Portal User Manual VXMT Eng V1.0||2.05 MB||Download|
|vLoc3 RTK-Pro User Handbook VXMT Eng V1.0||12.68 MB||Download|
|RTK-Pro Walk Back Feature Quick Guide VMXT Eng V1.0||1.30 MB||Download|
|Feature Logging Quick Guide VMXT Eng V1.0||591.72 KB||Download|
