Overview

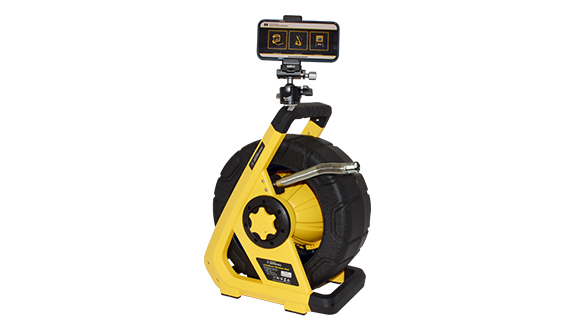

The vCamDrain features a Wi-Fi reel controlled by the vCam Mobile Controller (VMC) app. When connected to the reel by Wi-Fi, the VMC app controls the camera lights, distance counter reset, sonde and text writer. The app shows the reel’s Wi-Fi, battery, and charging status. Recording can be done directly to the app and instantly shared or copied to the reel’s USB port.
The stainless-steel 0.70″ (18mm) diameter HD camera with a sapphire lens and ultra-bright LEDs produces a crisp, clear image of the pipe’s interior. The 9mm custom pushrod provides a delicate balance of flexibility and pushing strength usable in lines from 1.5 to 3 inches. The drag-resistant nylon jacketing allows it to navigate multiple bends, tight turns, p-traps, and most toilet traps. Both camera head and spring assembly with built-in 512Hz frequency sonde are field serviceable.
The reel is powered by internal Li-ion batteries, which provide consistent, clean, long-life power. A six-hour charge will provide 12 hours of power with intermittent sonde use.
Watch videos created with the vCam camera systems on our YouTube Channel

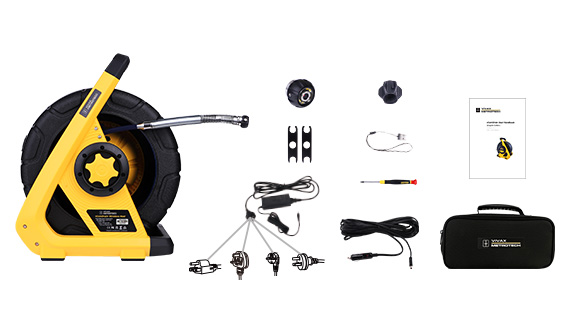

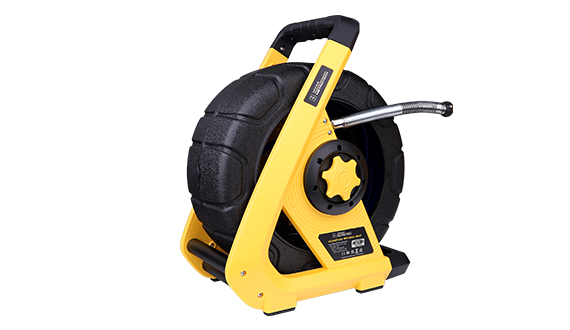

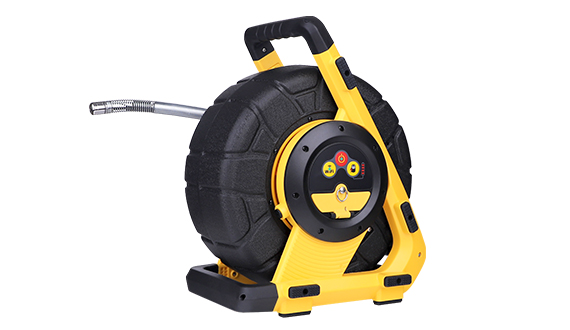

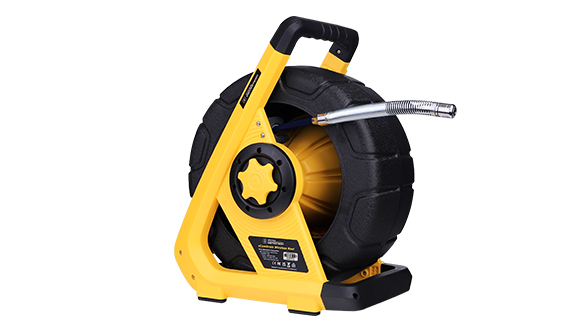

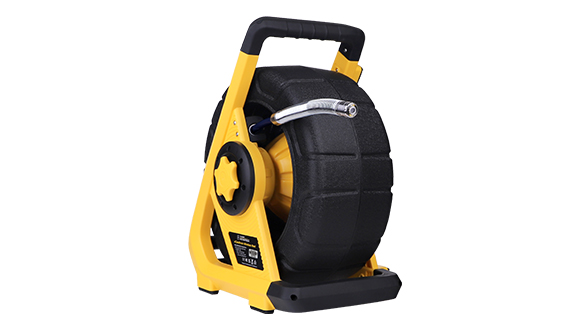

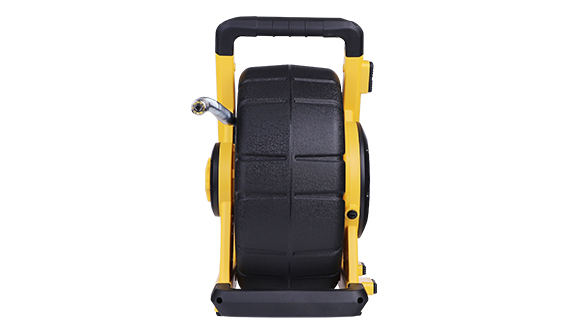

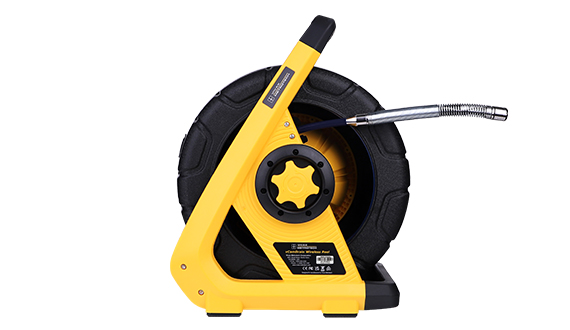

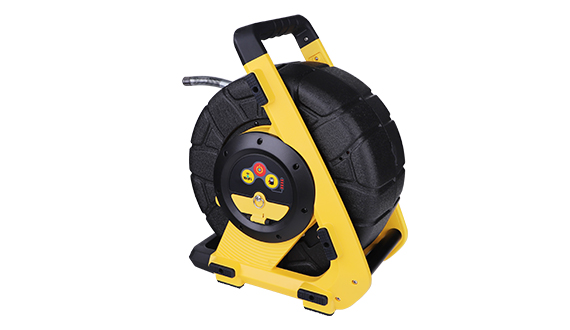

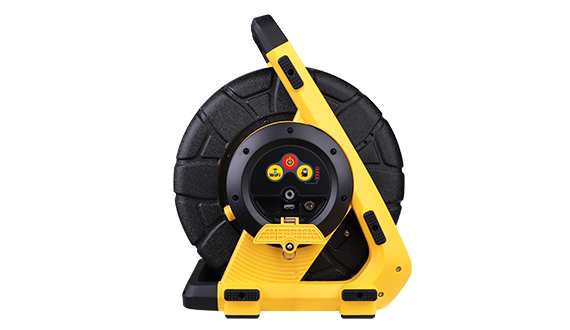

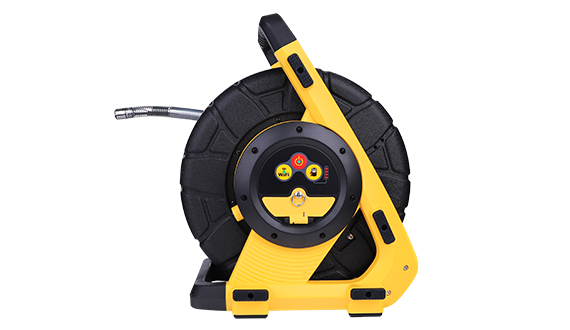

vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
Key Features
- Inspect lines from 1.5″ to 3″
- Wireless reel used with mobile devices
- VMC App controls all reel functions
- Instantly share files
- Navigate p-traps and toilet traps
- 70 or 100-ft of custom pushrod
Gallery
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCamDrain Wireless Reel
vCam Mobile Controller App
The vCam Mobile Controller (VMC) connects a tablet or smartphone to the vCam-6 or vCamMX-2+ controller via Wi-Fi and streams the live video into the app. The videos and pictures captured in the app can be shared using the tablet's native sharing options. What is seen on the control modules LCD is duplicated in...
