VM Companion Link Mobile App Quick Guide V1

Download

vScan-SE Sales Sheet V10

Download

vCam Wi-Fi Adapter Camera Test Lead Quick Guide V10

Download

vScan-SE Technical Specifications Eng V1.0

Download

Live Transmitter Connectors Technical Specifications V1.1

Download

vScan User Handbook VXMT Eng V1.6

Download

Loc3-10SiSTx Technical Specifications V1.2

Download

vCam Comparison Chart

Download

vScan & vScan-SE manual V10

Download

vCam Wi-Fi Adapter Sales Sheet V1.0

Download

vCam Wi-Fi Adapter Quick Setup and Connect Guide V1.0

Download

vCam WiFi Adapter Technical Specifications V1.0

Download

vCam WiFi Adapter User Handbook V1.0

Download

vCamWiFiAdapter_2.0.9

Download

vCam Wi-Fi Adapter Safety Data Sheet

Download

vCam Wi-Fi Adapter Li-ion Battery Safety Data Sheet

Download

Camera Skids Quick Guide V1.0

Download

vCamDrain_ota_15.3 firmware

Download

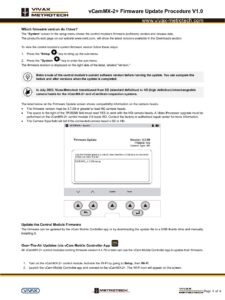

vCamMX-2+ Firmware Update Procedure V1.0

Download

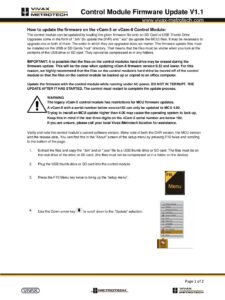

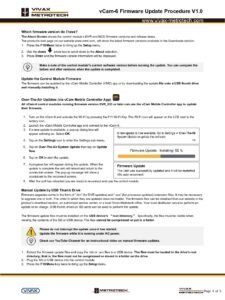

vCam-6 Firmware Update Procedure V1.0

Download

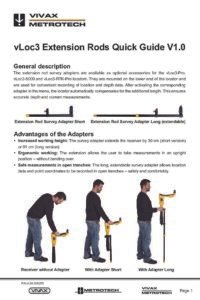

vLoc3 Extension Rods Quick Guide V1.0

Download

Technical Guidance SoC

Download

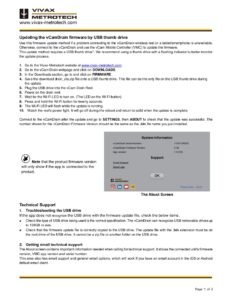

Updating the vCamDrain firmware by USB thumb drive

Download

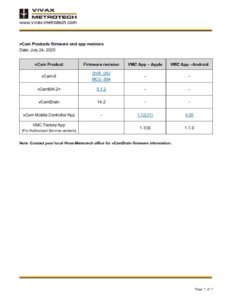

vCam Products firmware and app versions

Download

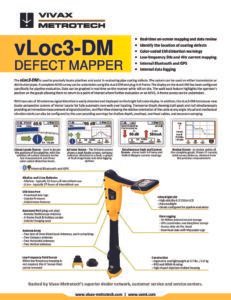

vLoc3-DM Sales Sheet V1.5

Download

Sharing Files with Microsoft OneDrive App Quick Guide

Download

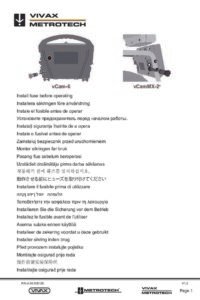

vCam-6 and vCamMX-2+ Inspection Products Fuse Installation V1.2

Download

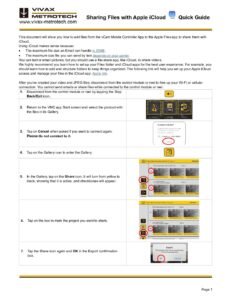

Sharing Files with Apple iCloud Quick Guide

Download

vCam Mobile Controller App User Handbook V1.4

Download

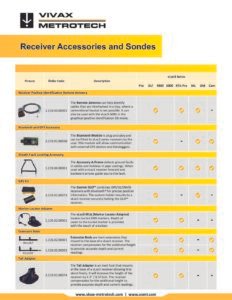

Receiver Accessories and Sondes Sales Sheet V1.0

Download

VM-810 VM-850 Sales Sheet V1.0

Download

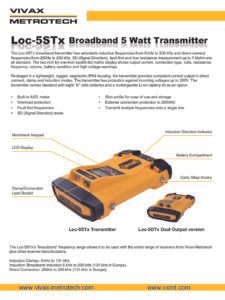

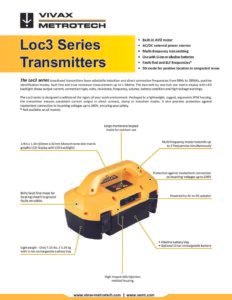

Loc3 Series Transmitters Sales Sheet V1.0

Download

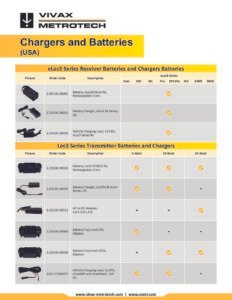

Chargers and Batteries Sales Sheet V1.0

Download

Sharing Files with Google Drive App Quick Guide

Download

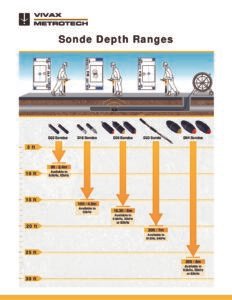

Sonde Depth Range Chart

Download

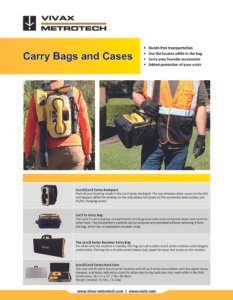

Bags and Cases Sales Sheet V1.0

Download

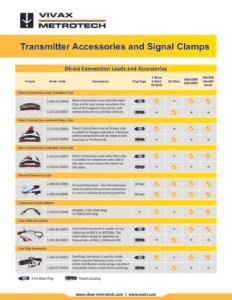

Transmitter Accessories and Signal Clamps Sales Sheet V1.0

Download

vCamMX-2+ User Handbook V1.0

Download

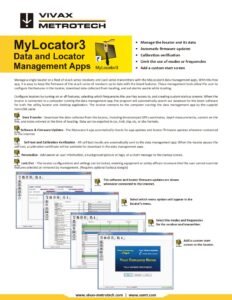

MyLocator3 Data and Locator Managment Apps Sales Sheet V1.2

Download

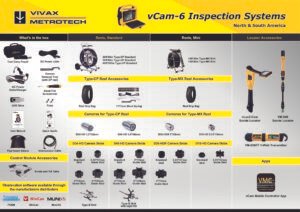

vCam-6 Inspection Systems Product Chart

Download

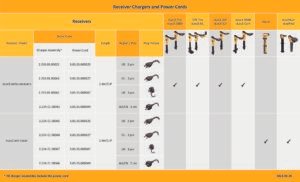

Battery Chargers and Power Cords Chart

Download

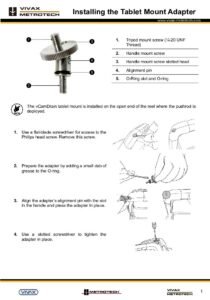

vCamDrain Installing the Tablet Mount Adapter Instructions

Download

vCamDrain User Handbook V1.1

Download

vCamDrain Technical Specifications V1.0

Download

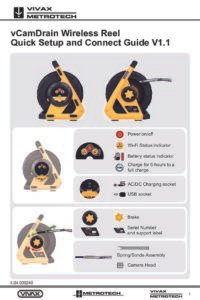

vCamDrain Quick Setup and Connect Guide V1.1

Download

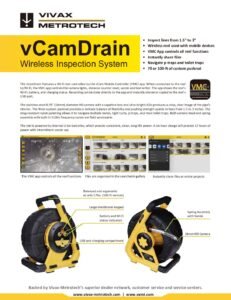

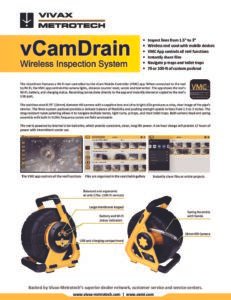

vCamDrain Sales Sheet V1.1

Download

VM-850 Transmitter Li-ion battery

Download

The Theory of Pipe and Cable Locating V1.2

Download

FLS-2 Features and Benefits V1.5

Download

Telephone Remote Control Quick Reference V1.0

Download

FLS-2 Sales Sheet V1.1

Download

vCam-6 Training V1.3

Download

vLoc3-Pro Training Presentation V1.2

Download

vCam-6 Control Module Li-ion battery (shares with vCamMX-2 and vCam-5)

Download

vLoc3-Pro Rx Li-Ion battery (shares with vScan Rx)

Download

vLoc3 Series Transmitter Li-ion battery tray (5 & 10 Watt are same battery)

Download

vScan Transmitter Li-ion battery (shares with VM-550FF Tx & VM-560FF Tx)

Download

A-Frame Fault Locators User Handbook V1.2

Download

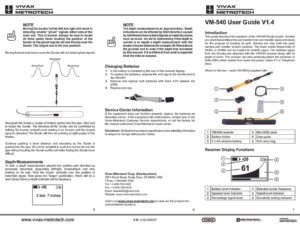

VM-500 Series and VM-880 User Handbook V1.1

Download

vLoc3 Series Receiver User Handbook V1.1

Download

VMMap Web Portal User Manual V1.0

Download

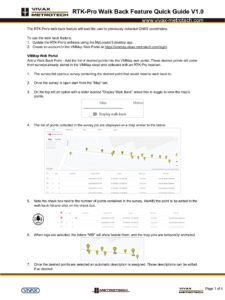

RTK-Pro Walk Back Feature Quick Guide V1.0

Download

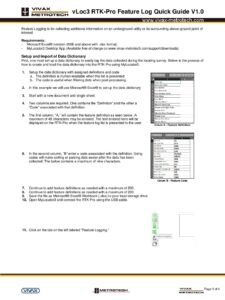

Feature Logging Quick Guide V1.0

Download

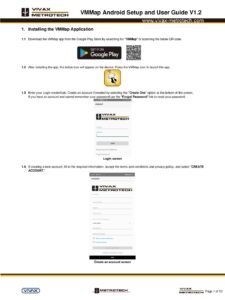

VMMap Android Setup and User Guide V1.2

Download

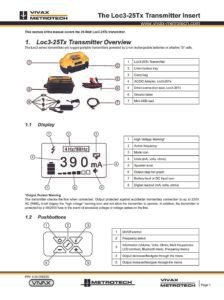

Loc3-25Tx Transmitter Insert

Download

Loc3-25Tx, 25-Watt Transmitter Technical Specifications V1.5

Download

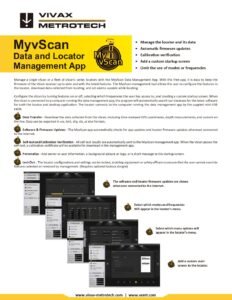

MyvScan Data Managment Mapping Apps V1.1

Download

Loc-150Tx Sales Sheet V1.3

Download

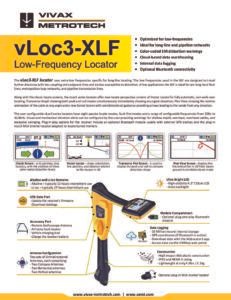

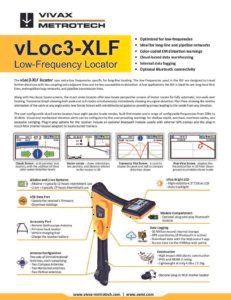

vLoc3-XLF Sales Sheet V1.4

Download

Loc-150Tx Transmitter Technical Specifications V1.5

Download

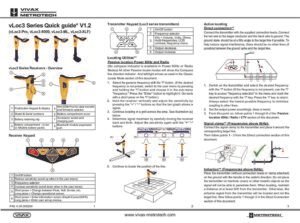

vLoc3 Series Quick Guide V1.2_North America

Download

vLoc3-XLF Technical Specifications V1.5

Download

VM-550 Technical Specifications V1.6

Download

VM-560 Technical Specifications V1.5

Download

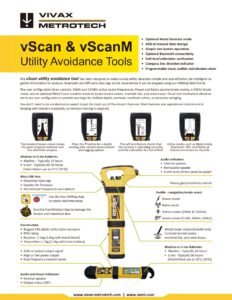

vScan Sales Sheet V1.2

Download

vLoc3 RTK-Pro Technical Specifications V1.6

Download

vLoc3 RTK-Pro User Handbook V1.2

Download

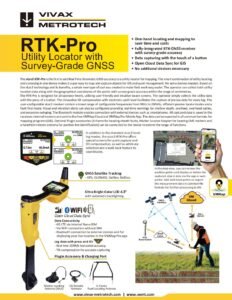

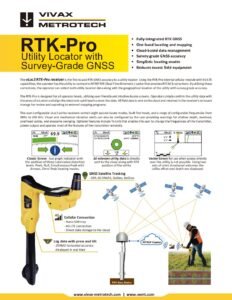

vLoc3 RTK-Pro Sales Sheet V1.5

Download

vLoc3-DM User Handbook V1.2

Download

vLoc3-DM Technical Specifications V1.5

Download

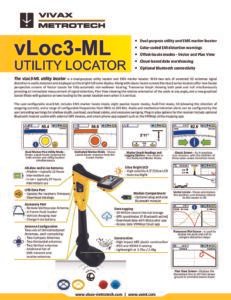

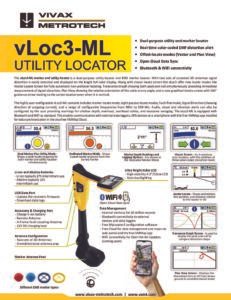

vLoc3-ML Sales Sheet V1.6

Download

vLoc3-ML Technical Specifications V1.5

Download

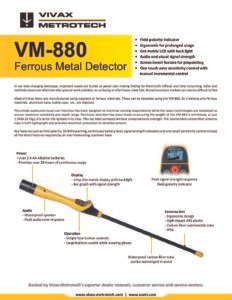

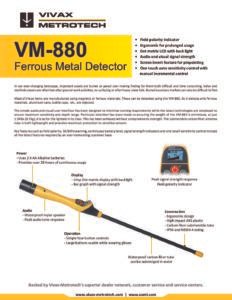

VM-880 Ferrous Metal Detector Sales Sheet V1.3

Download

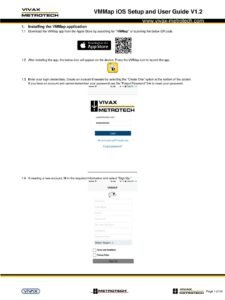

VMMap iOS Setup and User Guide V1.2

Download

vCam-6_DVR_064 firmware

Download

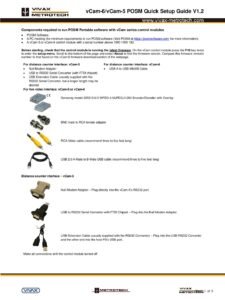

vCam-6 vCam-5 POSM Quick Setup Guide V1.2

Download

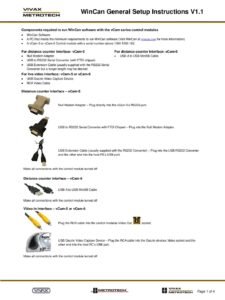

WinCan General Setup Instructions V1.1

Download

VM-585 – Desktop App v1.0

Download

VM-510 – Desktop App v1.2

Download

VM-810 VM-850 – Desktop App v1.0

Download

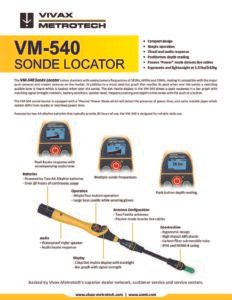

VM-540 VM-550 VM-560 – Desktop App v1.0

Download

vLoc3-MLA (Marker Locator Adapter) User Handbook V1.6

Download

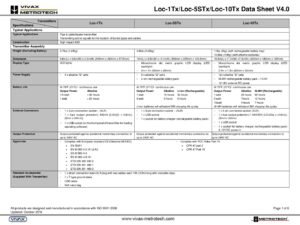

Loc3-10Tx, 10-Watt Transmitter Technical Specifications V1.9

Download

Loc3-5Tx, 5-Watt Transmitter Technical Specifications V1.9

Download

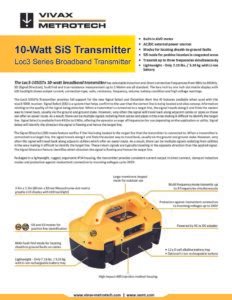

Loc3-10SiSTx Sales Sheet V1.4

Download

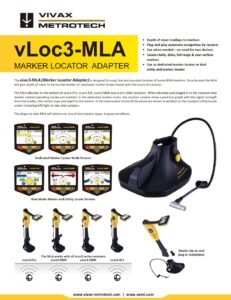

vLoc3-MLA Sales Sheet V1.4

Download

vLoc3-MLA Technical Specifications V1.5

Download

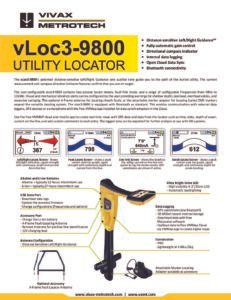

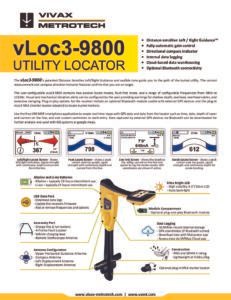

vLoc3-9800 Sales Sheet V1.7

Download

vLoc3-9800 Technical Specifications V1.9

Download

vLoc3-9800 User Handbook V1.7

Download

vLoc3-Cam User Handbook V1.5

Download

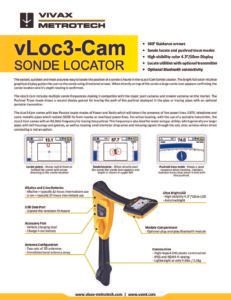

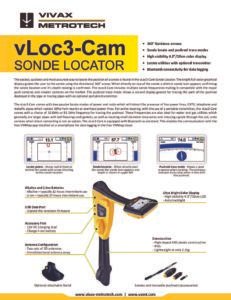

vLoc3-Cam Sales Sheet V1.4

Download

vLoc3-Cam Technical Specifications V1.9

Download

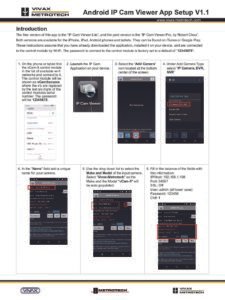

Android IP Cam Viewer App Setup V1.1

Download

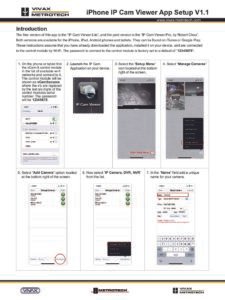

iPhone IP Cam Viewer App Setup V1.1

Download

vCamMX-2+_5.9.1 firmware

Download

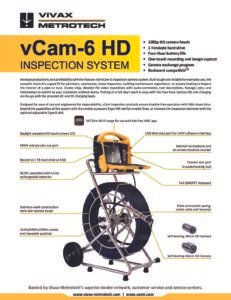

vCam-6 HD Inspection System Sales Sheet V1.8

Download

VM-550FF&VM-560FF Transmitters Technical Specifications V1.6

Download

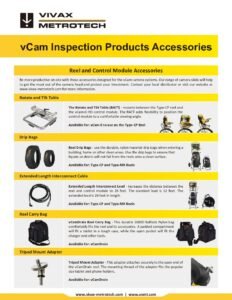

vCam Inspection Products Accessories Sales Sheet V1.5

Download

vCam-5 DVR firmware_044

Download

vLocPro2 vLocML2 User Handbook V1.8

Download

vLocPro User Handbook V2.0

Download

vLocDM User Handbook V2.1

Download

vCamLSR User Handbook V1.4

Download

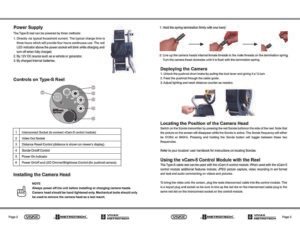

vCamLSR Quick Guide V1.1

Download

vCam-5 User Handbook V1.1

Download

Type-B Skid Technical Specifications V1.2

Download

vLoc3 Series Sonde Locating Quick Guide V1.5

Download

vLoc3 Series Remote Antenna User Guide V13

Download

MyLocator3 – Desktop App v1.30

Download

9890XT SFL2Dx User Handbook Metrotech vD

Download

9800XT User Handbook Metrotech vE

Download

i5000™ MetroMark™ (PN_R12015) User Handbook Metrotech vB

Download

850 User Handbook Metrotech 20010525

Download

810 User Handbook Metrotech vF

Download

i5000™ Transmitter _V2.0

Download

i5000™ Sheath Fault Locating _V2.0

Download

i5000™ Peak Null Antenna™ Receiver _V2.0

Download

i5000™ Distance Sensitive Left _ Right Guidance™ Receiver _V2.0

Download

MyLocator2 – Desktop App v2.7

Download

vCam-6_MCU604 firmware

Download

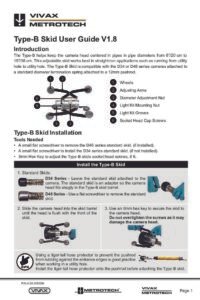

Type-B Skid User Guide V1.8

Download

VM-510FFL User Guide V1.3

Download

480B User Handbook Metrotech B

Download

810DX User Handbook Metrotech vD

Download

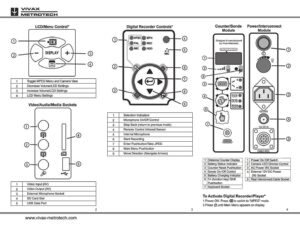

vCamModular Quick Guide V1.4

Download

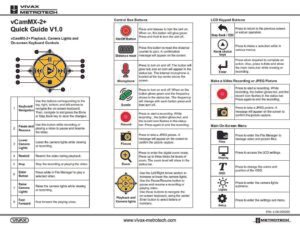

vCamMX-2+ Quick Guide V1.0

Download

vCamMX-2+ Technical Specifications V1.1

Download

vCamMX-2+ Inspection System Sales Sheet V1.2

Download

880 User Handbook Metrotech vB

Download

vLoc3 A-Frame Technical Specification V1.6

Download

vCam User Handbook V2.0

Download

FLS User Handbook V1.2

Download

vCamModular User Handbook V3.0

Download

vLoc3-5000 User Handbook V1.8

Download

VM-585 Technical Specifications V1.6

Download

VM-510FFL+ Sales Sheet V1.3

Download

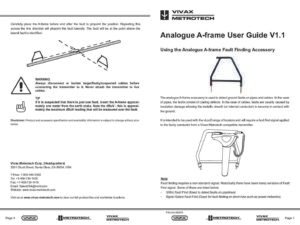

Analogue A-frame User Guide V1.1

Download

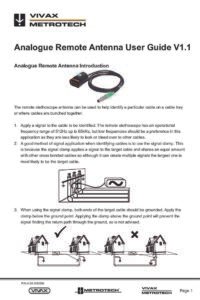

Analogue Remote Antenna User Guide V1.1

Download

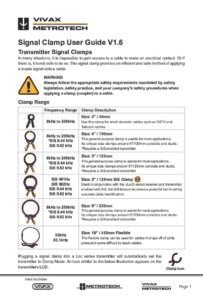

Signal Clamp User Guide V1.6

Download

Clamps and Clamp Accessories Technical Specifications V2.8

Download

LPC User Guide VXMT Eng V1.2

Download

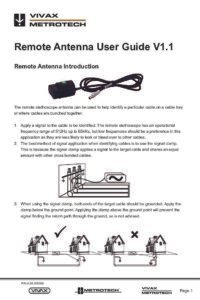

Remote Antenna User Guide V1.1

Download

Remote Antenna Technical Specifications V2.5

Download

A-frame Data Sheet V2.3

Download

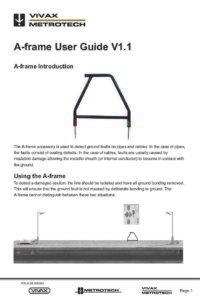

A-frame User Guide V1.1

Download

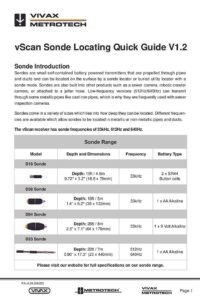

vScan Sonde User Guide V1.2

Download

Sonde Technical Specifications V2.7

Download

vLoc-9800 User Handbook V1.4

Download

vLoc-5000 User Handbook V1.5

Download

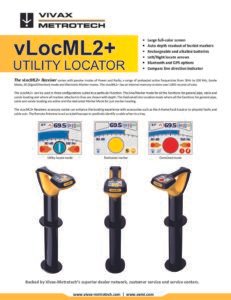

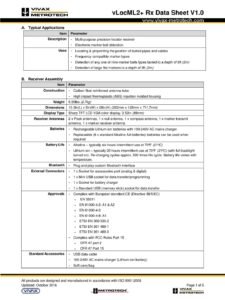

vLocPro2 vLocML2+ User Handbook V2.1

Download

FLS-2 User Handbook V1.7

Download

FLS-2 Technical Specifications V1.6

Download

vLocCam2 User Guide V1.2

Download

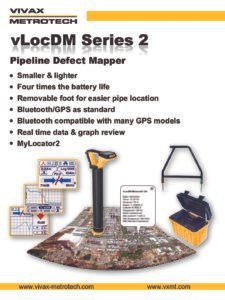

vLocDM2 User Handbook V1.5

Download

VM-480B User Handbook V1.7

Download

VM-510FFL+ A-frame Technical Specifications V1.6

Download

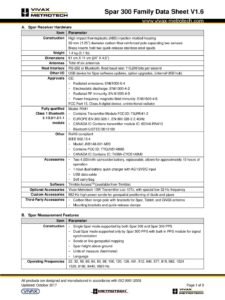

Spar 300 Reference Manual V2.2

Download

Spar 300 User Guide V1.1

Download

vLoc3-5000 Technical Specifications V1.8

Download

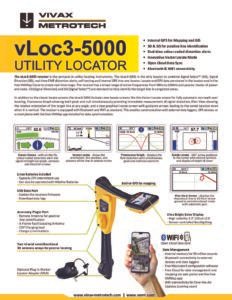

vLoc3-5000 Sales Sheet V1.7

Download

vLoc3-Pro Technical Specifications V1.9

Download

MyvScan – Desktop App v3.31

Download

vLoc3-Pro Sales Sheet V2.0

Download

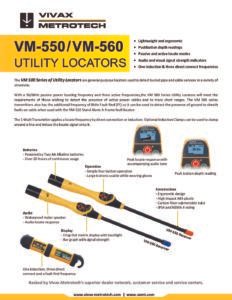

VM-550 VM-560 Utility Locator Sales Sheet V1.4

Download

VM-585 Utility Locator Ferrous Metal Detector Sales Sheet V1.5

Download

VM-850 Technical Specifications V2.4

Download

VM-810 VM-850 User Handbook V2.2

Download

VM-810 Technical Specifications V2.5

Download

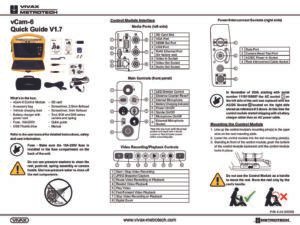

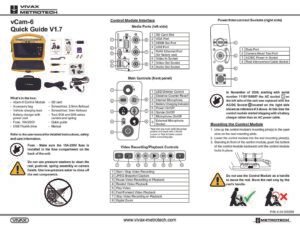

vCam-6 Quick Guide V1.7

Download

vCam-6 Technical Specifications V2.0

Download

vScan Technical Specifications V1.9

Download

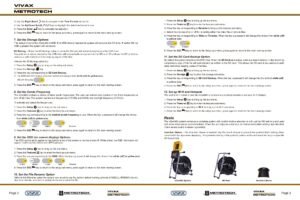

vCamMX Quick Setup Guide V1.0

Download

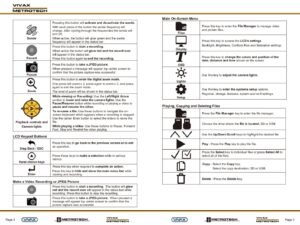

vCamMX Quick Guide V1.0

Download

vCam-6 User Handbook V1.6

Download

VM-880 – Desktop App v1.0

Download

VM-880 Technical Specifications V1.8

Download

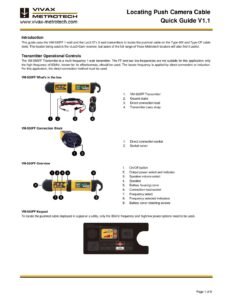

Locating Push Camera Cable Quick Guide V1.1

Download

vScan-SE Avoidance Tool

View More

vCam Wi-Fi Adapter

View More

vCamDrain System

View More

vLoc3-Pro Receiver

View More

RTK-Pro Utility Locator with Survey-Grade GNSS

View More

vLoc3-5000 Receiver

View More

vLoc3-9800 Receiver

View More

vLoc3-XLF Receiver

View More

vLoc3-ML Utility Locator

View More

Loc3 Series 5-Watt Broadband Transmitter

View More

Loc3 Series 10-Watt Broadband Transmitter

View More

Loc3 Series 25-Watt Transmitter

View More

vLoc3-Cam Sonde Locator

View More

vCam-6 HD Inspection System

View More

VM-500 Series Service Drop Locators

View More

VM-585 Service Drop Locator & Metal Detector

View More

VM-810 Utility Locator

View More

VM-850 Utility Locator

View More

vCamMX-2+ Mini Camera System

View More

1-Watt VM-500 Series Transmitters

View More

Loc-150Tx DM 150-Watt Transmitter

View More

FLS-2 50-Watt Rack Mount Transmitter

View More

Pipeline Defect Mapper

View More

VM-510FFL+ Fault Locator

View More

Metal Detectors

View More

We’re Exhibiting at Service World Expo in Las Vegas

Vivax-Metrotech will be exhibiting at Service World Expo November 2, 2026 View More

Meet us at Esri IMGIS 2026 in Palm Springs

Vivax-Metrotech will be exhibiting at the Esri Infrastructure Managem

October 20, 2026 View More

VMMap Web Update Version 2.23.0

VMMap Web v2.23.0 improves map interaction, reporting and exported data, RTK survey review, Walk Bac

October 19, 2026 View More

Upcoming October Events

This October, we're participating in a number of opportunities across the USA to meet our c

October 15, 2026 View More

Troubleshooting vCam Logs

Logs are text files showing the inner workings of our products' operating systems.

September 30, 2026 View More

Visit us at WEQ Fair 2026 in Nashville

Vivax-Metrotech will be attending the Wastewater Equipment Fair (WEQ)

September 22, 2026 View More

Vivax-Metrotech Partners with Oaktree

Vivax-Metrotech Partners with Oaktree to Accelerate Strategic Growth

September 1, 2026 View More

811 Day and Beyond: Promoting Safety at Vivax-Metrotech

As proud partners of 811 and the Common Ground Alliance (CGA), Vivax-Met

August 11, 2026 View More

We’re Exhibiting at Global DPS 2026 in Nashville

Vivax-Metrotech will be attending Global Damage Prevention Summit, th

August 5, 2026 View More

Visit Us at ISE Expo 2026 in Nashville

Vivax-Metrotech will be attending ISE Expo, the ICT industry and educ

August 5, 2026 View More

Join Us at CGA 2026 in Colorado Springs

Vivax-Metrotech will be attending this year's CGA Conference & Ex

April 15, 2026 View More

Avoid Utility Strikes This Spring: What Most Crews Still Get Wrong

Spring digging season is here—and

April 2, 2026 View More

Visit Vivax-Metrotech at WWETT Show 2026



Visit Vivax-Metrotech at WWETT Show 2026 January 20, 2026 View More

National Safe Digging Month

View More

Join us at WWETT25 in Indianapolis

View More

Join us at the ARA 2025 Show in Las Vegas, NV.

View More

Holiday Closure Notice

View More

Protect Underground Utilities and your life – 811

Protect Underground Utilities and your life - 811 On this 811 Day, we highlight

August 8, 2024 View More

Join us at ISE EXPO from August 20th to 22nd, 2024

View More

2024 MCGA International Locate Rodeo Results

Outstanding performance with vLoc3 Precision Locators February 6, 2024 View More

Join us in New Orleans February 18-21, 2024

View More

Vivax-Metrotech wishes you and yours a Happy Holiday!

View More


Join us at WWETT24 in Indianapolis

View More

Join us at the 2023 International Locate Rodeo and 2023 MOCGA Summit

View More

Join us at No-Dig Down Under, Sept 13-14

Vivax-Metrotech AUS is thrilled to be exhibiting at No-Dig Down Under at the Brisbane Convention and

September 5, 2023 View More

Join us at the Utility Expo in Louisville, Sept 26

View More

Visit us at the ISE Expo

Please join us to discuss your locating, video inspection, surveying, and mapping needs at the ISE E

August 15, 2023 View More

vLoc3 Over the Air Update

View More

vCam-6 Product Update

vCam-6 Product Update Control module AC power and charging This is a

July 11, 2023 View More

It’s Locator Safety & Appreciation Week

View More

vCamMX-2 Firmware Update

View More

CGA23 Social Media YOUR COMPANY HERE

View More

We’re Exhibiting at WWETT Show 2023

View More

We’re Inviting You to ARA Show 2023

February 13-15, 2023

View More

The Theory of Pipe and Cable Locating PPTx

We are happy to announce that our presentation on “The Theory of Pipe and Cable Locating” has be

October 11, 2022 View More

vCam Mobile Controller App

The vCam Mobile Controller (VMC) tablet app is now available for download from the

September 1, 2022 View More

Locating Fiber Optic Cables

Fiber optic cables are a critical part of modern life carrying vast amounts of data to businesses, i

July 18, 2022 View More

May’s Locating Nuggets

In my 30-plus years working alongside and supporting thousands of capable utility locate techs, I've

June 2, 2022 View More

VMMap Web Portal Update V18.6

The following are new features that have been added to VMMap Web Portal in version 18.6:  May 27, 2022 View More

April is National Safe Digging Month

If you plan to plant trees for Earth Day and Arbor Day projects, remember to call 811 ahead

April 15, 2022 View More

MyLocator3 keeps your vLoc3 up to date

Manage a single or a fleet of vLoc3 series utility locators with the free MyLocato

April 11, 2022 View More

Locating the Camera Pushrod

Introduction This newsletter describes using the VM-550FF 1-watt and the Loc3-5Tx

March 17, 2022 View More

vLoc3-5000 Receiver Software Update

Software Update: vLoc3-5000_1.38.ldr Production Release: v1.38 SVN17657 February 23, 2022 View More

Promote Your Presence At The WWETT 22!

Join us LIVE in Indianapolis for the WWETT Show February 22-24, 2022 February 21, 2022 View More

vLoc3-DM Receiver Software Update

Software Revision: 1.37 Release This software update:

vLoc3-Cam Receiver Software Release

Software update v1.36 is available for the vLoc3-Cam Receiver S

February 10, 2022 View More

Mount The VCam-6 Control Module To The Legacy Type-C Reel

Now you can replace the older Type-C reel's original handle with a version that will mount the vCam-

December 1, 2021 View More

What is LACP and how is it used with push cameras?

PACP stands for Pipeline Assessment Certification

November 16, 2021 View More

Update Your Type-M And Type-M2 Mini Camera Systems

Update your older Type-M and Type-M2 Mini Reels by replacing the termination base kit, spring assemb

November 2, 2021 View More

Locating Service Drops

Anyone who has experience with cable locating will quickly point out a few valuable facts that will

October 19, 2021 View More

Fault Locating With The VM Series Products

Locating the route of a cable is sometimes just the start of the process. The operator very often ne

October 7, 2021 View More

The Roundtable Live Broadcast

Please tune into Planet Underground on Wednesday the 29th of September from 10:00 am to 10:4

September 28, 2021 View More

Detecting Buried Ferrous Utilities

Finding buried manhole covers, valve box covers, cleanouts, or tanks can be a time-consuming process

August 24, 2021 View More

Getting An Accurate Distance Count

This article applies to both the standard size Type-CP Reel and the smaller Mini-size Type-MX Reel.

July 25, 2021 View More

MyLocator3 Software Update

  1. Barcode string attributes support added to Features & Attributes import.
  2. July 9, 2021 View More

New Loc3 Series Backpack Accessory

Pack all your locating needs in the Vivax-Metrotech Loc3 Series Backpack. Made from durable 1680D Ba

April 13, 2021 View More

RTK-Pro Walk Back Feature

The new Walk Back feature in the RTK-Pro receiver allows the field technic

March 17, 2021 View More

Product Announcement: Video format change for the vCam-6 Control Module

Dear Valued Customer: Firmware version 014 is now available for download from your local Vivax-Me

March 16, 2020 View More

vCamMX-2 Update to record in MP4 format

All vCamMX-2 firware update released after 3 March 2021 will update the recording format from the AV

February 27, 2019 View More

Vivax-Metrotech wins 2018 Locate Rodeo

Vivax-Metrotech is proud to announce the winners of the 2018 Locate Rodeo held in Texas on Saturday

November 26, 2018 View More

Miss Utility Touch-A-Truck 2018

Vivax-Metrotech was proud to be a partner in the Miss Utility Touch-A-Truck 2018 event. One Call Con

September 10, 2018 View More

German office

Vivax-Metrotech is very proud and excited to announce that we opened a new facility in Germany in Ju

August 29, 2018 View More

Vivax-Metrotech launches the new vLoc3-Pro and vLoc3-5000 Receivers

The vLoc3-Pro utility locator introduces new innovative tools for locating buried u

August 27, 2018 View More

Santa Clara California——Vivax-Metrotech Corporation

Vivax-Metrotech Corporation is proud to announce we have attained the transition from ISO 9001:2008

June 21, 2018 View More

The new VM-510FFL Standalone A-frame

Finding the location of an underground cable fault just became easier with the VM-510FFL Standalone

July 19, 2016 View More

vCam Series, Camera and Spring Removal

vCam Series, Camera and Spring Installation

vCam MX Series, Camera and Spring Reel Removal and Installation

Cam - How to reterminate the pushrod

Spar 300 Offsets Tutorial

Spar 300 - Bluetooth Connection Tutorial

Spar 300 - Measuring Points Tutorial

Spar 300 Transmitters Tutorial

Spar 300 Transmitters Tutorial v2

Spar 300 - Dual Spar Tutorial v3

RTK-Pro featured in "The Future of Locating: A Planet Underground TV Short"

vSammKs-2 Mini Video Inspection Camera

Locating devices of the vLoc3 series, setup, function overview and basic operation

Coming Soon

Coming Soon

Coming Soon

Coming Soon

Coming Soon

Coming Soon

D34-HD Camera 4"/100mm PVC Pipe Inspection

The vCamMX-2 Mini Video Inspection Camera

Coming Soon

Coming Soon

Coming Soon

Dummy Video

Dummy Video

Coming Soon

Coming Soon

Coming Soon

Spar 300 Sonde Calibration Tutorialv2

Sonde Calibration Tutorial

Spar 300 Transmitters Tutorial v2

34mm HD Camera in a 18-inch (45cm) storm drain line

The D34-HD Video in a 4

vCam Cameras LACP/PACP/WRC Integration

vCam Series, Camera and Spring Removal

vCam Series, Camera and Spring Installation

Camera and Spring Reel Removal and Installation for the vCamMX Camera Series

Sondes and Sonde Locating

Coming Soon

Coming Soon

Coming Soon

Vivax-Metrotech Type-B Skid used in Mainline Pipe Inspection

Coming Soon

Coming Soon

Coming Soon

An overview of the Loc3 Series (5 & 10-Watt) Transmitters

Features of the Loc3 Series Buried Utility Locator Transmitter (5 & 10-Watt)

Coming Soon

The vCam-6 HD Video Inspection Camera

The vCamMX-2 Mini Video Inspection Camera

D34-HD Camera 4

The vCam-6 HD Video Inspection Camera

Coming Soon

Sondes and Sonde Locating

Spar 300 Transmitters Tutorial

Coming Soon

Coming Soon

Coming Soon

Coming Soon

vLoc Series Fault Find Tutorial

Spar 300 Transmitters Tutorial v2

Coming Soon

Coming Soon

Coming Soon

vScan Traning Video 2

vScan Traning Video 2

vScan Traning Video 2

vScan Traning Video 2

Spar 300 Utility Surveying

Spar 300 Offsets Tutorial

Spar 300 - Measuring Points Tutorial1

Spar 300 - Dual Spar Tutorial v3

Spar 300 - Bluetooth Connection Tutorial

Spar 300 Subsurface Utility Surveyor

vLoc3 Pro Training Presentation V1 1 v2

An overview of the vLoc3-Pro Buried Utility Locator

vLoc3-Pro - An overview of the modes and features

Coming Soon

Coming Soon

Coming Soon

Coming Soon

How To - vCamDrain Firmware Update by USB

Coming Soon

Coming Soon

Coming Soon

vCam Series, Camera and Spring Removal

vCam MX Series, Camera and Spring Reel Removal and Installation

Coming Soon

The vCam-6 HD Video Inspection Camera

Coming Soon

Coming Soon

vLoc3 Series Locators, Setup, Function Overview and Basic Operation

vLoc3 Series Locators, Setup, Function Overview and Basic Operation

vLoc3-Pro - An overview of the modes and features

An overview of the vLoc3-Pro Buried Utility Locator

vLoc3 Pro Training Presentation V1 1 v2

Features of the Loc3 Series Buried Utility Locator Transmitter (5 & 10-Watt)

An overview of the Loc3 Series (5 & 10-Watt) Transmitters

Using PACP and LAPC with Push Camera Systems

vCam - How to reterminate the pushrod

Vivax-Metrotech vCamMX-2 Mini Inspection Camera, Features and Benefits

Vivax-Metrotech vCam-6 Push Camera, Inspection of small-diameter main lines

RTK-Pro featured in

vCam Series, Camera and Spring Removal

vCam Series, Camera and Spring Installation

vCam MX Series, Camera and Spring Reel Removal and Installation

Cam - How to reterminate the pushrod

Spar 300 Offsets Tutorial

Spar 300 - Bluetooth Connection Tutorial

Spar 300 - Measuring Points Tutorial

Spar 300 Transmitters Tutorial

Spar 300 Transmitters Tutorial v2

Spar 300 - Dual Spar Tutorial v3

The theory of electromagnetic locating

How to Update your vCam-6 Firmware

How To Update your Firmware in the vCam MX Inspection System

vCamMX-2 and vLoc3 Sonde Locate

Locating sondes and pushrod with the vLoc3-Cam

How deep can I locate?

How deep you can locate buried utilities depends on the model of the locator, the strength of the signal being detected, ground conditions and the condition of the utility. Under good conditions, the below can be achieved.

  • General locating - up to 15-feet
  • Sondes - up to 9-feet (using 512Hz/640Hz Sonde in a cast iron pipe)
  • Sonde - up to 15-feet (using 33kHz Sonde in a non metallic pipe)

Is there a way to calculate depth to a target line?

A locator with a single horizontal antenna can be used using the "70% method". First, pinpoint the target line and set the locator sensitivity to show a reading of 100% or full-scale deflection (fsd). Keeping the locator close to the ground, move it to the left and right until the meter reading reduces to 70% of fsd and mark these points. The distance between these two points will be twice the depth to the center of the target line.

Can I measure the depth to a target line?

Yes, most locator models (except the 480 series) can measure the depth to a target line. The locator utilizes two horizontal antennas to measure depth in the same way our two eyes can judge distance. The strength of the signals on these two horizontal antennas is compared, and the system software uses this to calculate the depth electronically and indicate the reading on the display. With the VB-480B Locator, you can estimate depth measurement using the triangulation method (see Page 12 of the VM-480B user manual).

Where is the best place to measure depth?

The best place to measure the depth on the target line is on a straight utility section. You do not want to take depth measurements at tees, bends, or significant changes in depth. If you must measure depth in the vicinity of these areas, try to do so at least ten paces away from the area to minimize any effects from signal distortion. Also, never measure the depth to a target line within thirty paces of a transmitter operating in the induction mode.

How accurate is the depth reading?

As a general rule, the depth measurement accuracy is 5% of actual depth.

How do I measure current?

The vLoc series locators have a current measurement feature that can assist the user to correctly identifying a target cable. This feature works much the same way as depth calculation. This feature is also helpful to determine how much signal there is at a given point, which can assist in fault location and understand how much signal is left on the target line.

How accurate is the current reading?

As a general rule, the current measurement accuracy is 5% of the actual current.

What is a Passive Signal?

The Power and Radio modes are considered passive signals; these signals are often present "naturally" on buried metallic utilities. They provide a convenient means of searching for these utilities without the need to connect a transmitter. Loaded power cables radiate 50/60 Hz energy that the receiver can detect in Power mode. However, power signals may also be present on other cables and metallic pipes due to coupling. Longwave radio transmissions penetrate the ground and cause radio frequency currents to travel along with metallic utilities, and these can be detected with the Radio mode. Passive signals should never be used for identifying the line being located.

What is an Active Signal?

An active signal is generated by a signal transmitter at a specific frequency and imposed onto the target line through a direct connection, use of a signal clamp, or induction. An active signal allows the user to target a specific cable or pipe, pinpoint its position, measure depth and current and trace the route.

What is the difference between direct connection and induction?

As the name suggests, a direct connection is simply that; the output from the transmitter is connected directly to the target line. Induction, on the other hand, is based on the principle of electromagnetic induction. The transmitter has an internal coil of wire that, when energized, produces an electromagnetic field (at a given frequency) which will induce or couple to any metallic line the transmitter is placed over. Direct connection is the first choice for signal application as this method utilizes lower frequencies. This reduces the risk of signal coupling to adjacent metallic lines, and the signal will travel further along the target line. However, in cases where direct connection is not possible, induction is a suitable method of applying the transmitter signal.

What is signal distortion, and why does it affect locating?

To understand signal distortion and how it affects the locate, it is essential first to understand that when locating cables and pipes, the locator is not detecting a cable or pipe, but rather the electromagnetic field, active or passive, that radiates from them. Therefore, anything that affects this electromagnetic field, and there can be many reasons, can, in turn, affect the locate position and depth measurement.

Can I get accurate results when inducing a signal onto a water main?

Yes, however, this is not the recommended method; direct connection is. Paying close attention to the receiver's signal strength will ensure an accurate locate can be achieved.

How far will the transmitter signal travel?

This most frequently asked question is one locator manufacturers try to avoid answering. A detailed explanation is required to appreciate why this is. The rate of signal loss on any given line is a function of its electrical characteristics, i.e., conductivity, capacitance and inductance relative to the ground and other adjacent metallic lines.
Factors that affect locate distance include:

  • Frequency being used
  • Condition of the target line
  • Soil conditions
  • Effects of signal coupling
  • Sensitivity of the receiver
  • Signal current on the line
  • Depth of the utility
It is impossible to alter the line's characteristics, so the key is to minimize the factors that affect locate distance. The transmitter signal can be tailored to ensure it has the best chance of traveling the furthest amount of distance, and for this reason, the choice of signal frequency is essential. As a general rule, always use the lowest frequency possible for the given method of signal application as low frequencies tend to travel further than higher frequencies. For signal application, always use direct connection first, followed by signal clamp, then induction. However, there is likely to be an optimum frequency for any given line and situation. The only valid means to determine this is through experimentation.

Where is the best place to attach the direct connection lead?

Directly to the target cable or pipe you wish to locate. Use the safest connection point offering a good metal connection, i.e., valves, bolts, armoring etc. Remember that the ground stake is the safest grounding option. Never ground to any metallic structure with an above-ground or below-ground structure as it will sometimes radiate the locate signal better than the line being located.

Can you use the transmitter while it is recharging?

No, the chargers are not designed to supply power for locating. On some models, a separate power lead is available (as an option) so that the transmitter can be powered from a vehicle. Do not try to make one using the charging plug – the wiring configuration is different from that of the charger.

How do I minimize coupling (bleed-over)?

Unwanted coupling of the signal is one of the most common locating problems, increasing errors in the locate position or depth of the target line due to distortion and often leading to the marking of the wrong line.
To minimize these unwanted effects, ensure:

  • Avoid applying the signal using induction; use a direct connection or a signal clamp where possible
  • Use the lowest frequency possible for the given method of signal application
  • Use the minimum power output that can be detected
  • Avoid applying the signal in congested areas
  • Extend the ground stake as far from the connection point as possible
  • Avoid using structures for grounding, as other services may be bonded to them
  • Use double-ended connections to by-pass the ground return

What can be done in poor soil conditions to get a stronger locate signal?

There are several actions you can take to improve the grounding of the transmitter signal in poor soil conditions.

  • Pour water around the ground stake.
  • Try moving it to an area where more moisture is present.
  • Running an "extension" cable from the transmitter earth (black) lead to a nearby road sign or other similar metal objects that may increase your signal.

What should be considered when using a signal clamp on a cable?

The cable must be grounded at both ends for a successful locate when using a signal clamp.

My signal clamp has a gap at the back. Is this a problem?

No, it depends on the type of cores used in the clamps – in the case of most clamps, they are designed to have a gap, roughly the thickness of a business card, and maybe cleaned by using a business card as a gauge. The vLoc clamps use a different material, and there should be no gap on those.

What is rebar? How can rebar affect the locate signal?

Rebar is the common name for the metal bars used to reinforce the concrete structure. When locating over an area containing rebar, the locate signal may lose clarity or spread across a wide area. If this happens, then the rebar is to blame. To check, raise the locator by about 0.5m (18-inches) or knee level and reduce the sensitivity; this should clear or minimize any effect from the rebar.

Can I locate non-metallic lines?

Generally, it is not possible to locate non-conducting or non-metallic lines with ordinary pipe & cable locators on their own. However, many utility companies install tracer wire above or alongside their non-metallic services, usually located. For non-metallic drains, ducts and pipes, these can be located with the aid of a Sonde, or in the case of the CCTV inspection cameras, a Sonde is frequently built into them just behind the camera head.

What is a Sonde?

Sondes small battery-powered transmitters inserted and propelled into pipes, drains, or ducts and are located on the surface by a sonde locator or utility locator what a sonde mode. The receiver must have a "Sonde" mode that includes a separate Sonde depth measurements algorithm to read the depth to a sonde.

How do I locate a sewer camera inspection system?

The majority of camera systems have a built-in 512 or 640Hz sonde. If not, one can be attached to the camera pushrod behind the camera head. If inspecting a cast iron pipe, use a 512Hz or 640Hz sonde. If inspecting a non-metallic pipe, a 33 kHz will work.

Can I use a Sonde in a metal pipe?

Low-frequency Sondes operating at 512 Hz or 640Hz can be used in cast iron pipes and detected at depth ranges of up to 3m. Sondes cannot be used in ductile iron or steel pipes.

Can I use my locator to find buried treasure?

No, Vivax-Metrotech locators are explicitly designed for the detection, location and tracing of buried utilities.

What type of batteries should I use?

The batteries used will depend on the model of the locator's receiver and transmitter. All alkaline batteries used in our locators are standard off-the-shelf batteries such as AA, C cells, D cell, PP9 batteries (smoke detector batteries). The smaller sondes may use button-style batteries similar to those used in watches and small calculators. All of our rechargeable packs are sealed and should never be opened. Replacement rechargeable packs should be bought from Vivax-Metrotech or a regional repair center.
Please note that:

  • Rechargeable batteries may vary in different locator models, and receiver batteries will be different from transmitter batteries.
  • The correct battery charger must be used to avoid damage to the unit, possible harm to the operator, or start a fire in the worst case.
  • Battery chargers frequently contain electronics that govern the rate of charge even if the voltage, polarity and current rating are the same. Other chargers could cause damage to the unit, possible harm to the operator, or start a fire in the worst case.
  • Never dispose of any types of batteries in a fire.
  • Always dispose of batteries responsibly and follow your company's policy for battery disposal.
  • Beware that there are shipping regulations regarding the shipping of batteries & battery packs, specifically Lithium-Ion. Check with your carrier before shipment, or call Vivax-Metrotech for guidance.
  • Do not turn any battery charger on/off repeatedly when charging. Each time the unit is turned off/on, the charging cycle starts again. This could result in overcharging and shortening the life of the rechargeable batteries. In extreme cases, it could result in overheating or fire.
  • Always use the locator before charging again.

How do I know my instrument is working?

Check the batteries, all associated cables and clamps, and ensure everything operates as described in the user manual. In addition, having a known test site helps determine if the instrument is working correctly.

My unit is not working, is there any repair I can do to fix it?

We recommend that you try changing the batteries and checking the conductive attachment leads. A qualified Metrotech Repair Center should perform any other repairs.

How should I clean my equipment?

Do not use solvents for cleaning. If it is necessary to remove mud or grime, use a sponge dampened with warm water. A mild soap may be used to loosen ingrained dirt. Periodically wipe the display window with an anti-static fluid. Do not immerse the receiver or transmitter in any liquid during cleaning.

Where is Vivax-Metrotech located?

Please visit the Contact Us page on our website. It has addresses and contact numbers for all our locations as well as our authorized service centers.

Do I need an RMA # to send my equipment in for repair?

No, we do not require RMA #'s, but we request that you include your PO# or preferred payment method, name, contact phone #, symptoms if known, `ship to` street address and `bill to address. Please indicate if an estimate is required, pre-approved limit or priority service is required. On our website, in the Support option, you can find a Service Center Request form. You can fill in this form online and then print it to put in the box along with your product for repair. There is no charge for priority repair service other than related shipping costs, such as overnight instead of ground.

Where do I send my unit for repair? What address?

If the dealer you purchased the Vivax-Metrotech locator from has a service center, contact them. Check our website for the nearest repair center. Vivax-Metrotech Corporation
3251 Olcott Street, Santa Clara CA 95054
1-800-638-7682
