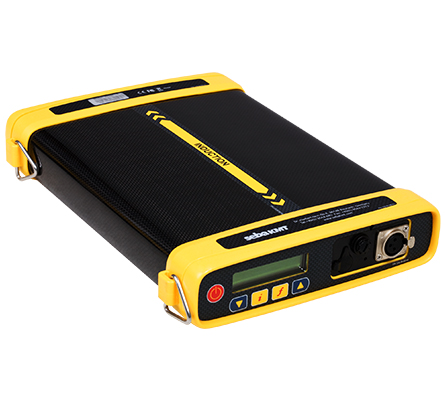

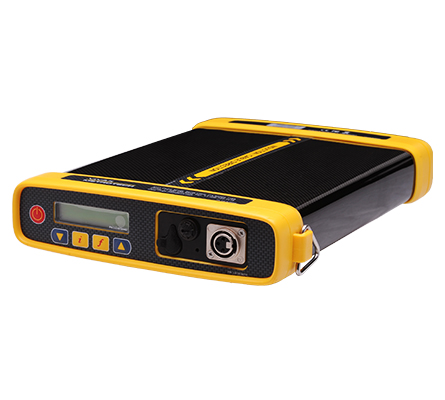

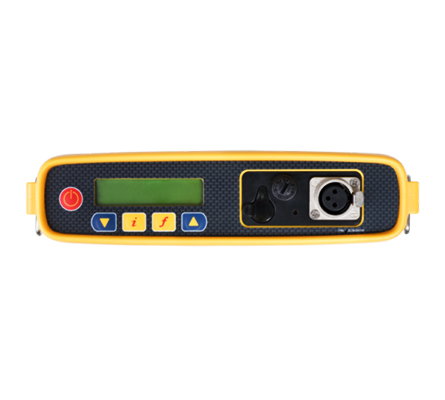

The Loc-5Tx transmitter has selectable induction frequencies from 8kHz to 200kHz and direct-connect frequencies from 512Hz to 200kHz. SD (Signal Direction), fault find and true resistance measurement up to 1 Mohm are all standard. The backlit dot matrix display shows output current, connection type, volts, resistance, frequency, volume, battery condition and high voltage warnings.

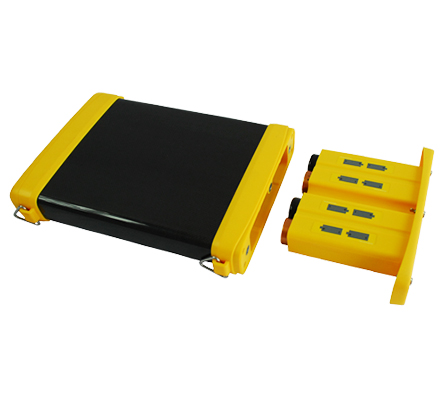

Packaged in a lightweight, rugged, ergonomic IP54 housing, the transmitter provides consistent current output in direct connect, clamp and induction modes. The transmitter has protection against incoming voltages up to 260V. The transmitter comes standard with “D” cell batteries and a rechargeable battery kit as an option.
