Loc-5STx 5-Watt Transmitter and Loc-5DTx 5-Watt Dual Output Transmitter

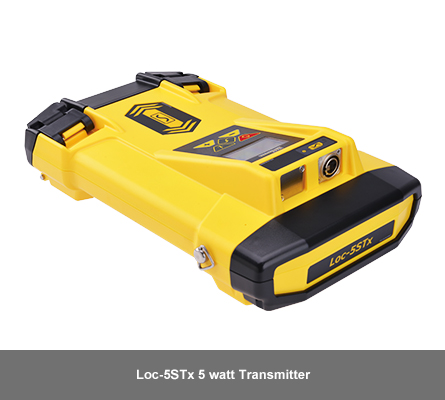

The Loc-5STx broadband transmitter has selectable induction frequencies from 8kHz to 200kHz and direct-connect frequencies from 512Hz to 200kHz. SD (Signal Direction), fault find and true resistance measurement up to 1 Mohm are all standard. The two inch by one-inch back-lit dot matrix display shows output current, connection type, volts, resistance, frequency, volume, battery condition and high voltage warnings.

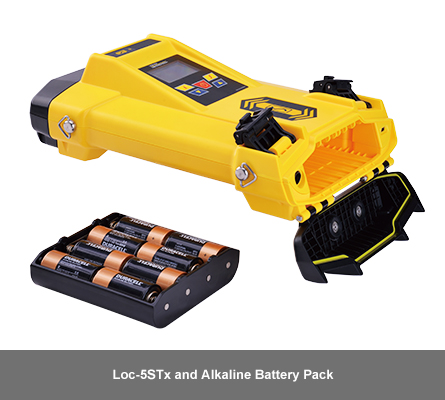

Packaged in a lightweight, rugged, ergonomic IP54 housing, the transmitter provides consistent current output in direct connect, clamp and induction modes. The transmitter has protection against incoming voltages up to 260V. The transmitter comes standard with eight “D” cell batteries. A rechargeable Li-ion battery kit is available as an option.

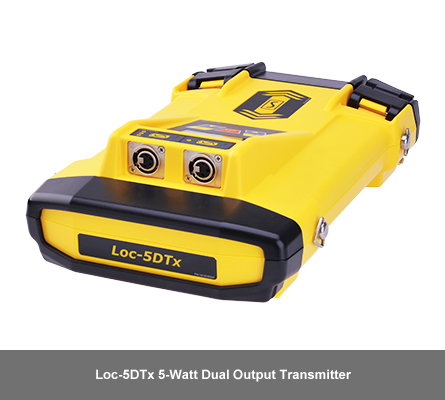

The Loc-5DTx transmitter has the capability to send up to four frequencies (between 8kHz and 83kHz) simultaneously, each of them allocated to a different output (channel).

The Loc-5DTx broadband transmitter has selectable induction frequencies from 8kHz to 200kHz and direct-connect frequencies from 512Hz to 200kHz. SD (Signal Direction), fault find and true resistance measurement up to 1 Mohm are all standard. The two inch by one-inch back-lit dot matrix display shows output current, connection type, volts, resistance, frequency, volume, battery condition and high voltage warnings.

Packaged in a lightweight, rugged, ergonomic IP54 housing, the transmitter provides consistent current output in direct connect, clamp and induction modes. The transmitter has protection against incoming voltages up to 260V. The transmitter comes standard with eight “D” cell batteries. A rechargeable Li-ion battery kit is available as an option.



Replaced by: Loc3 Series 5-Watt Broadband Transmitter

Download

brochureSizeDownload
Loc-5STx Broadband 5 Watt Transmitter Sales Sheet VXMT Eng V1.5 1.25 MB Download
