Loc-10Tx 10-Watt Series Transmitters

The Loc-10Tx broadband transmitter has selectable induction frequencies from 8kHz to 200kHz and direct-connect frequencies from 512Hz to 200kHz. SD (Signal Direction), fault find and true resistance measurement up to 1 Mohm are all standard. The two inch by one-inch backlit dot matrix display shows output current, connection type, volts, resistance, frequency, volume, battery condition and high voltage warnings.

Packaged in a lightweight, rugged, ergonomic IP54 housing, the transmitter provides consistent current output in direct connect, clamp and induction modes. The transmitter has protection against incoming voltages up to 260V. The transmitter comes standard with eight “D” cells batteries and a rechargeable Li-ion battery kit as an option.



The Loc-10SiSTx 10-Watt Transmitter has all the features of the Loc-10Tx plus it provides full support for the new Signal Select and Distortion Alert line ID features available when used with the vLoc3-5000 receiver.

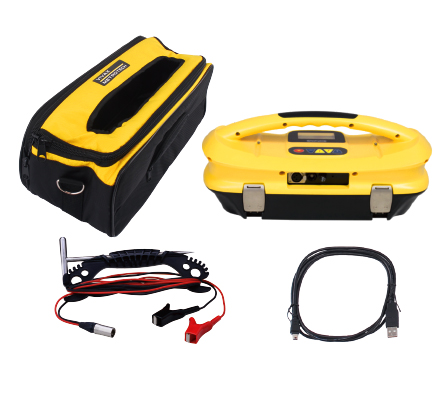

Both transmitters are supplied in a soft carry bag with ground stake and connection leads.



Replaced by: Loc3 Series 10-Watt Broadband Transmitter
