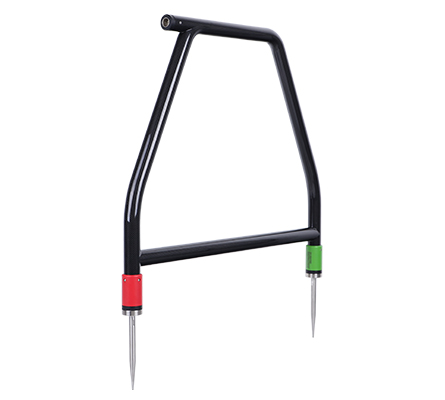

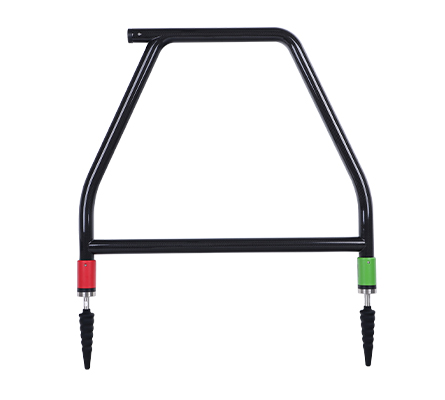

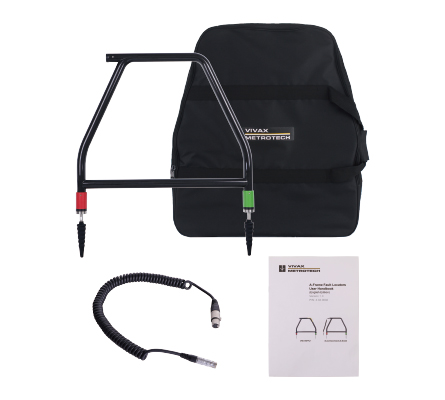

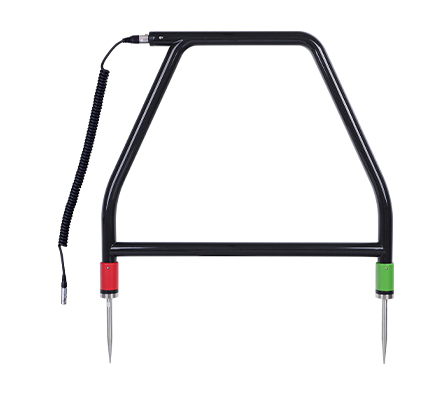

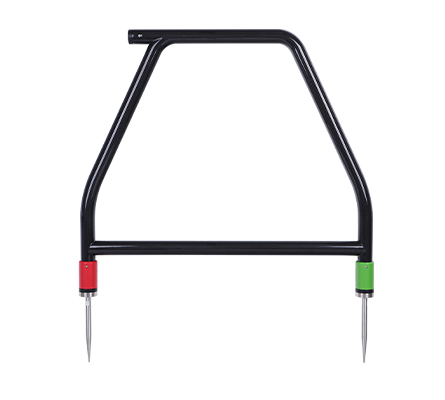

vLoc3 Accessory A-Frame

The vLoc3 Series Accessory A-Frame accessory is used to detect ground faults on pipes and cables. In the case of pipes, the faults consist of coating defects. In the case of cables, faults are usually caused by insulation damage that allows the metallic sheath (or internal conductor) to contact the ground.

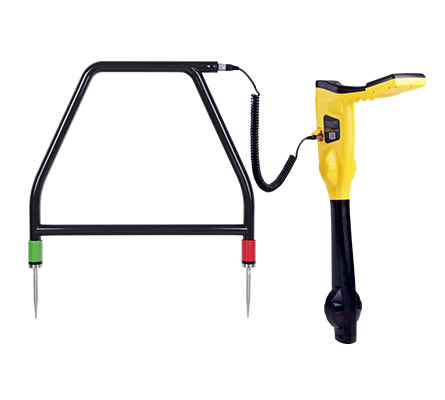

It is intended to be used with the vLoc3-Pro range of locators and will require a fault-find signal applied to the faulty conductor from a Vivax-Metrotech compatible transmitter with fault-finding mode.

  • Carbon fiber reinforced glass fiber construction
  • Plug-in-Play powered by the receiver
  • Forward/backward arrows point to the fault



Download

brochureSizeDownload
Receiver Accessories and Sondes Sales Sheet V1.0 548.59 KB Download
technical-specification
vLoc3 A-Frame Technical Specification V1.5 370.55 KB Download
manual
A-Frame Fault Locators User Handbook V1.2 4.64 MB Download
