vCam-MX Camera Test Leads

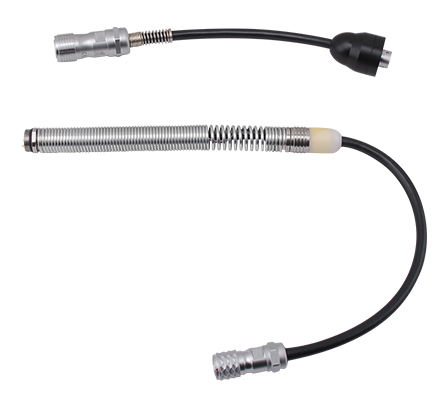

The vCamMX Camera Test lead is a troubleshooting tool used to check the MX series camera heads buy bypassing the reel and going straight into the control module.

This accessory comes with an adapter for those who use a vCam-5 or vCam-6 control module with a Type-MX reel.

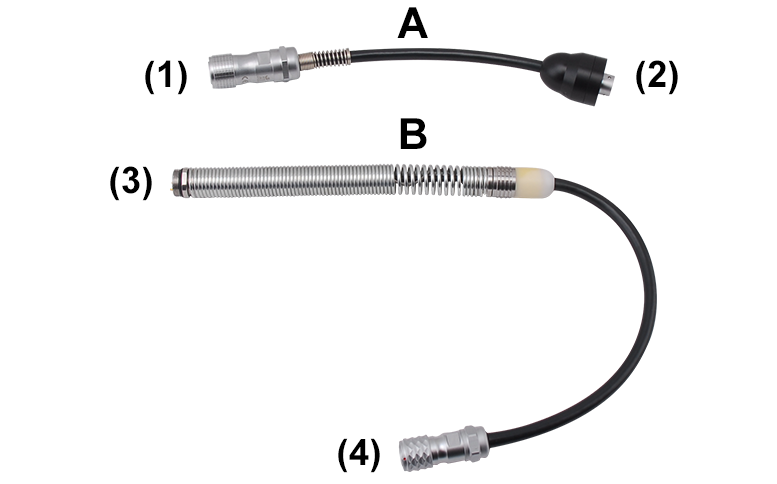

A.  vCam-5 Adapter – Use this adapter to test a MX camera (D18-MX or D26-MX) with the vCam-5 or vCam-6 control module

B.  vCamMX Test Lead – Use to test a MX camera (D18-MX or D26-MX) with the vCamMX series control module

1.  vCam-5/vCam-6 Plug – This end plugs into the vCam-5 or vCam-6 control module

2.  Adapter plug – Plug the MX plug on the MX test lead into this socket to use with the vCam-5 or vCam-6

3.   MX Camera mount – Attach an MX series camera head

4.   vCamMX Plug – This end plugs into the vCamMX control module
