Overview

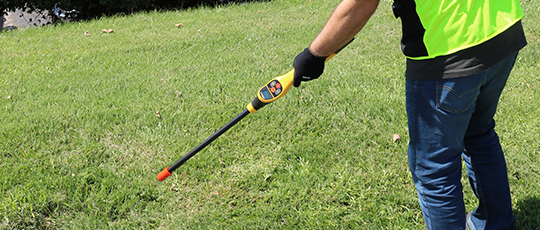

The VM-550 is a general-purpose locator used to detect buried pipe and cable services in a variety of situations. With a 50/60Hz passive power locating frequency and three active frequencies, the VM-550 locators will meet the requirements of those wishing to detect the presence of active power cables and to trace short ranges. The VM-550 transmitter also has the additional frequency of 8kHz Fault-find so it can be used to detect the presence of ground to sheath faults on cable when used with the VM-510 Stand Alone A-Frame fault locator.

The 1-Watt Transmitter applies a locate frequency by direct connection or induction. Optional Induction Clamps can be used to clamp around a line and induce the locate signal onto it.

VM-550 Utility Locator frequencies: 50/60Hz, 512/640Hz, 8.19kHz, 83.1kHz and 8kHz FF



Key Features

  • Rugged and lightweight
  • Visual and audio response
  • Passive and active locate modes
  • Pushbutton depth of cover reading

Download

brochureSizeDownload
VM Series Brochure VXMT Eng V3.1 4.22 MB Download
VM-550 VM-560 Utility Locator Sales Sheet VXMT Eng V1.1 1.34 MB Download
quick-guide
VM-550FF VM-560FF User Guide VXMT Eng V1.1 2.98 MB Download
datasheet
VM-550Rx VM-550FF Tx Data Sheet VXMT Eng V1.0 241.88 KB Download
VM-550FF VM-560FF and VM-585FF Tx Data Sheet VXMT Eng V1.0 226.51 KB Download
software
VM540 VM550 VM560 App_1.0 2.10 MB Download
