The VM-560 is a general-purpose locator used to detect buried pipe and cable services in a variety of situations. With a 50/60Hz passive power locating frequency and three active frequencies, the VM-560 locator will meet the requirements of those wishing to detect the presence of active power cables and to trace short ranges. The VM-560 transmitter also has the additional frequency of 8kHz Fault-find so it can be used to detect the presence of ground to sheath faults on cable when used with the VM-510 Stand Alone A-Frame fault locator.
The 1-Watt Transmitter applies a locate frequency by direct connection or induction. Optional Induction Clamps can be used to clamp around a line and induce the locate signal onto it.
VM-560 Utility Locator frequencies: 50/60Hz, 512/640Hz, 8.19kHz, 480kHz and 8kHz FF

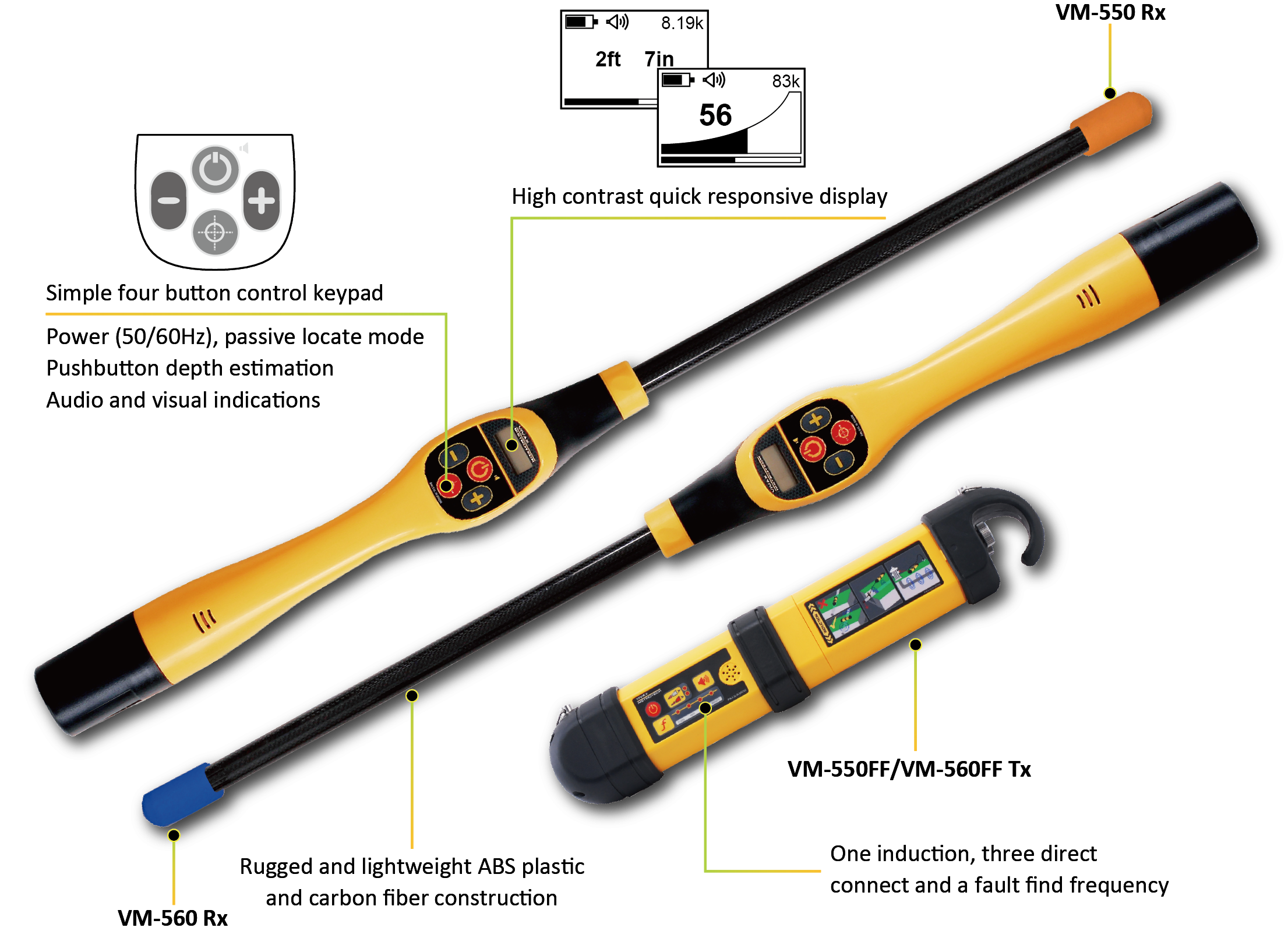

- Rugged and lightweight
- Visual and audio response
- Passive and active locate modes
- Pushbutton depth of cover reading
|VM Series Brochure VXMT Eng V3.1||4.22 MB||Download|
|VM-550 VM-560 Utility Locator Sales Sheet VXMT Eng V1.1||1.34 MB||Download|
|VM-550FF VM-560FF User Guide VXMT Eng V1.2||856.49 KB||Download|
|VM-560Rx VM-560FF Tx Data Sheet VXMT Eng V1.0||335.88 KB||Download|
|VM-550FF VM-560FF and VM-585FF Tx Data Sheet VXMT Eng V1.0||226.51 KB||Download|
|VM540 VM550 VM560 App_1.0||2.10 MB||Download|
